Products Description

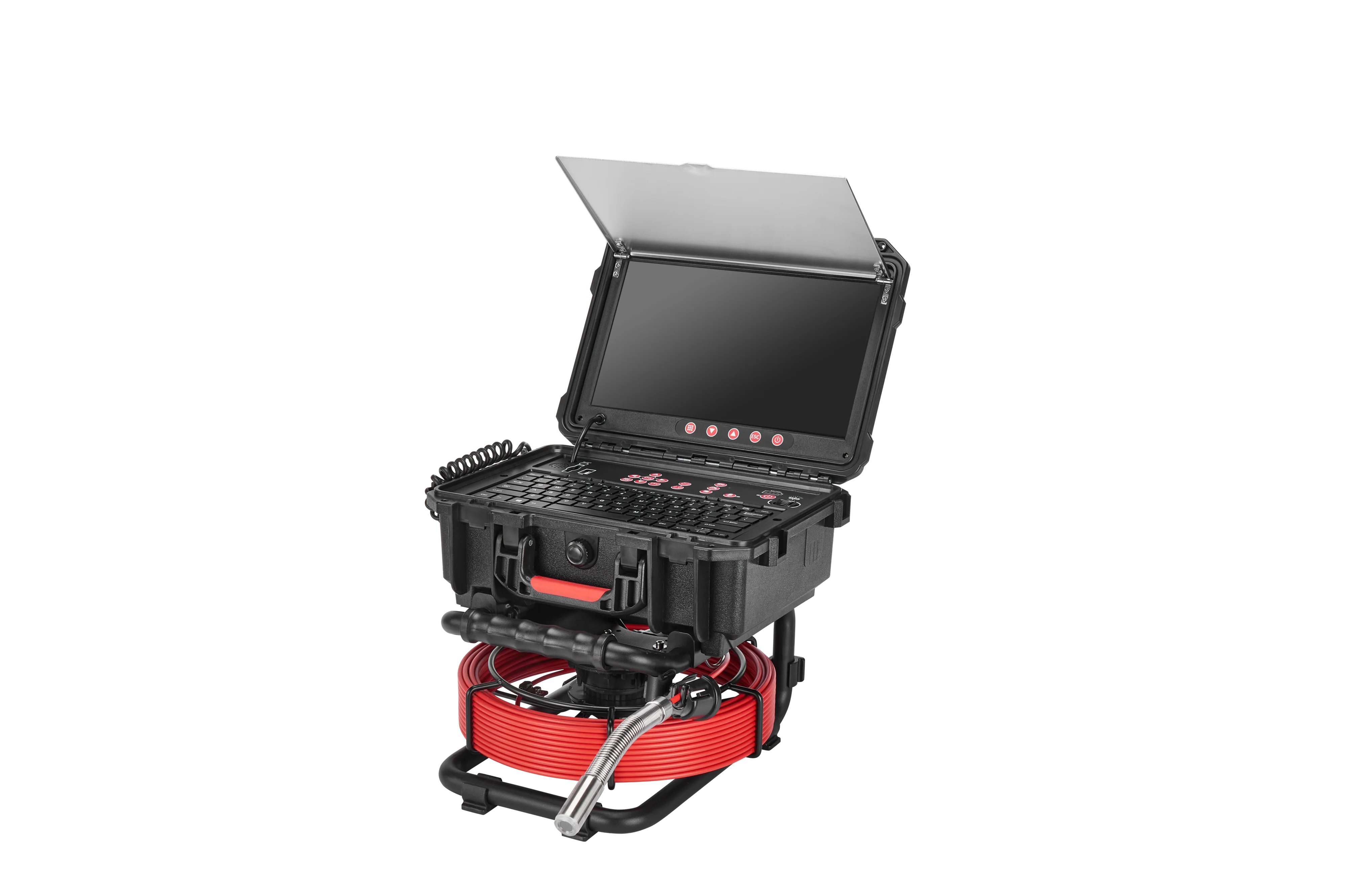

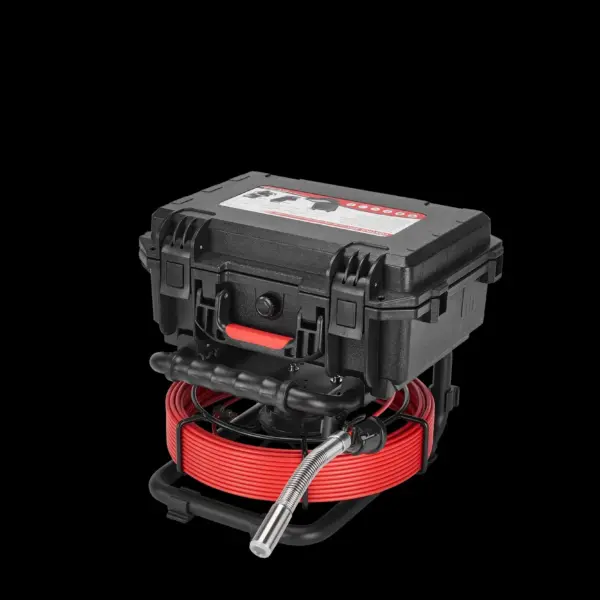

This HD sewer pipe inspection camera system is with compact, rugged, portable and humanized design for efficient operation in sewer; drain, duct ,chimney, milk pipes, water mains, central air conditioning, heating system, pipe ventilation systems,plumbing related sites and where a pipe inspection camera is required. It consists of three main parts:

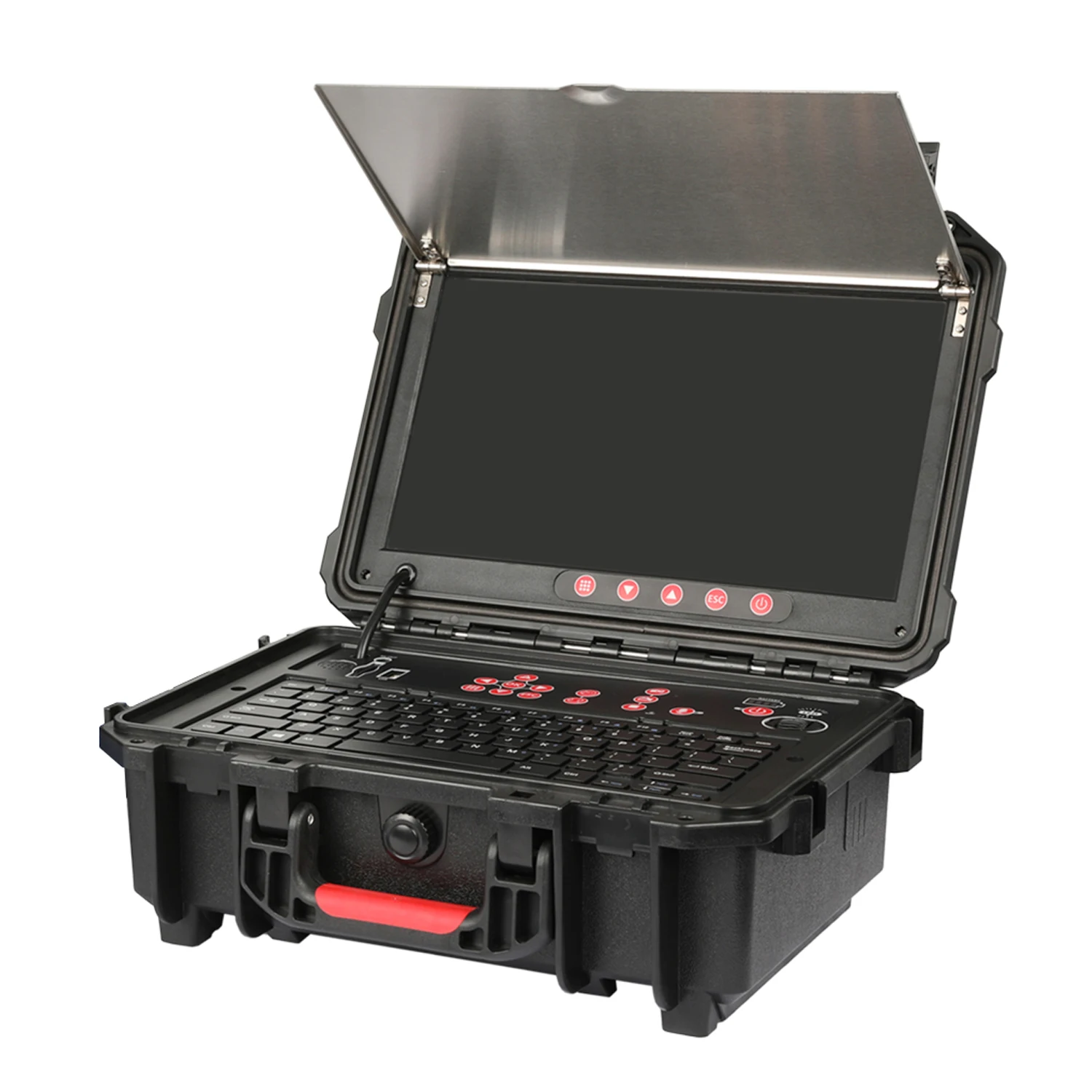

1. control box with 9 inch or 13.3 inch big IPS DVR monitor and wireless keyboard for text input;
2. Metal frame with automatic padlock;
3. Big cable reel with meter counter equipment, fiberglass push rod and 12.8mm or 21mm HD Camera(sapphire lens).
It is suitable for pipes with inner diameter at 15mm-200mm. Ability to go through 90° bends in pipe at:
32mm (for 12.8mm camera with 4.8mm push rod ),
45mm (for 21mm camera with 5.3mm push rod),
52mm (for 21mm camera with 6.8mm push rod).
32mm (for 12.8mm camera with 4.8mm push rod ),
45mm (for 21mm camera with 5.3mm push rod),
52mm (for 21mm camera with 6.8mm push rod).

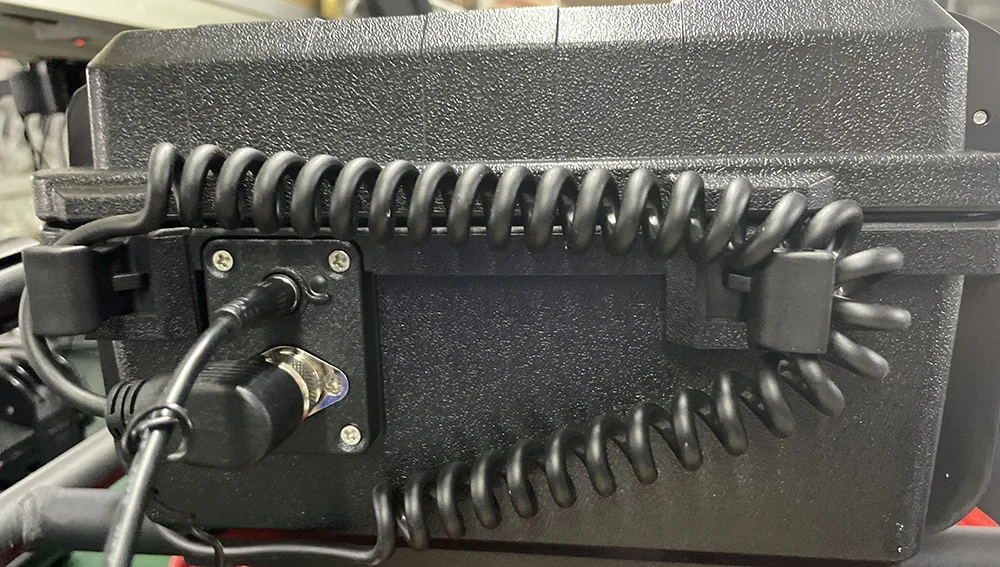

2 Pothooks make the cable settle easier

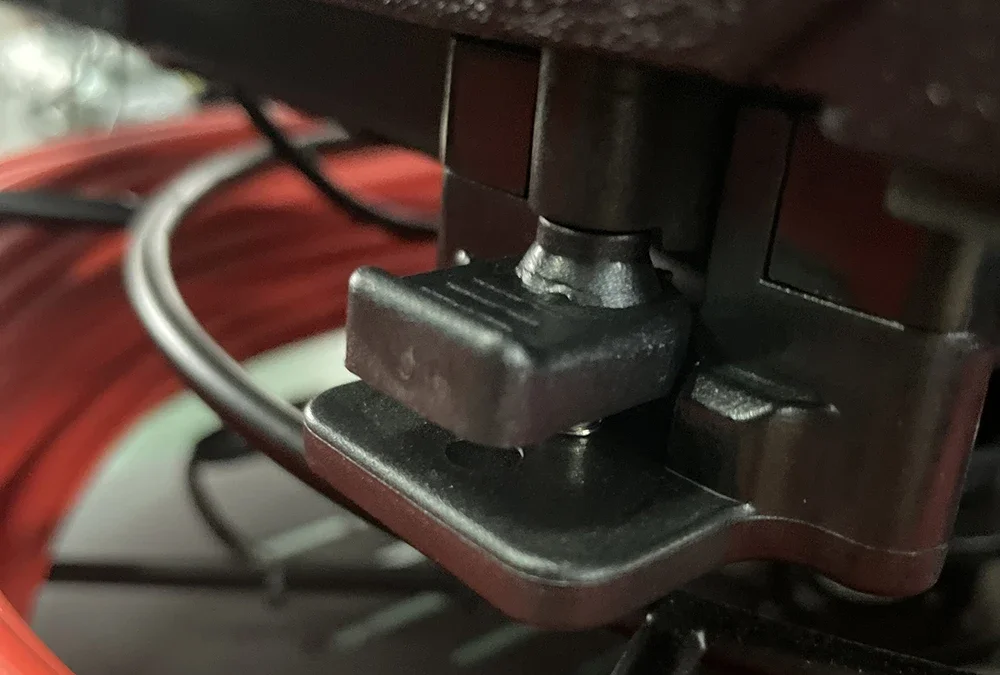

Automatic Padlock: just one step to lock and unlock the tool case with metal frame

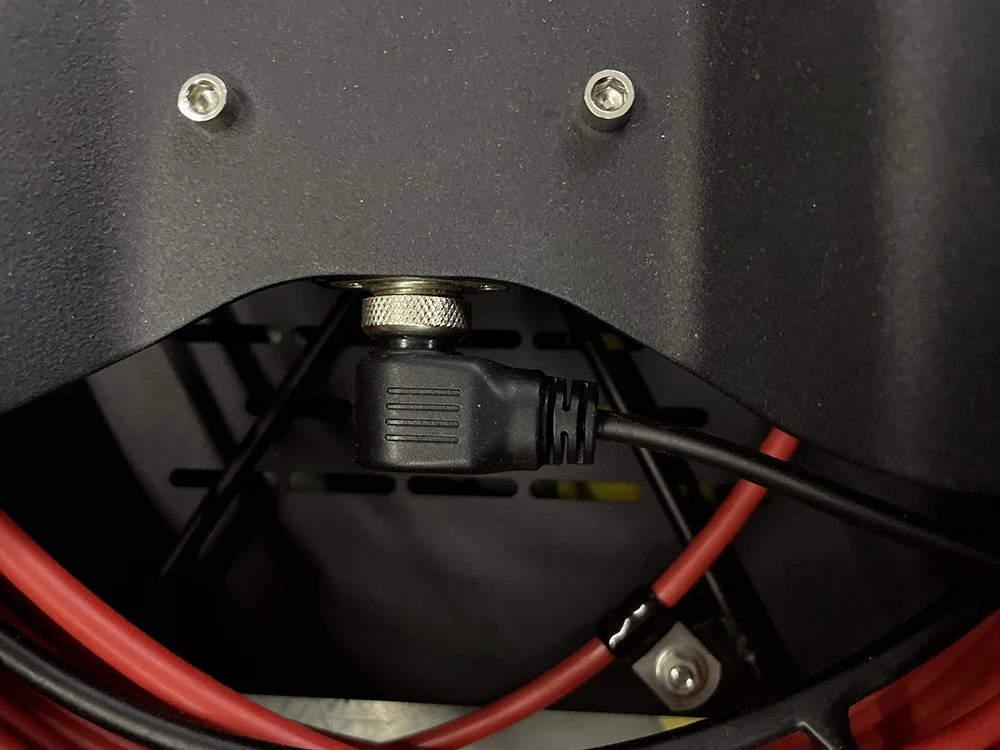

Side-mounted interface prevent contamination

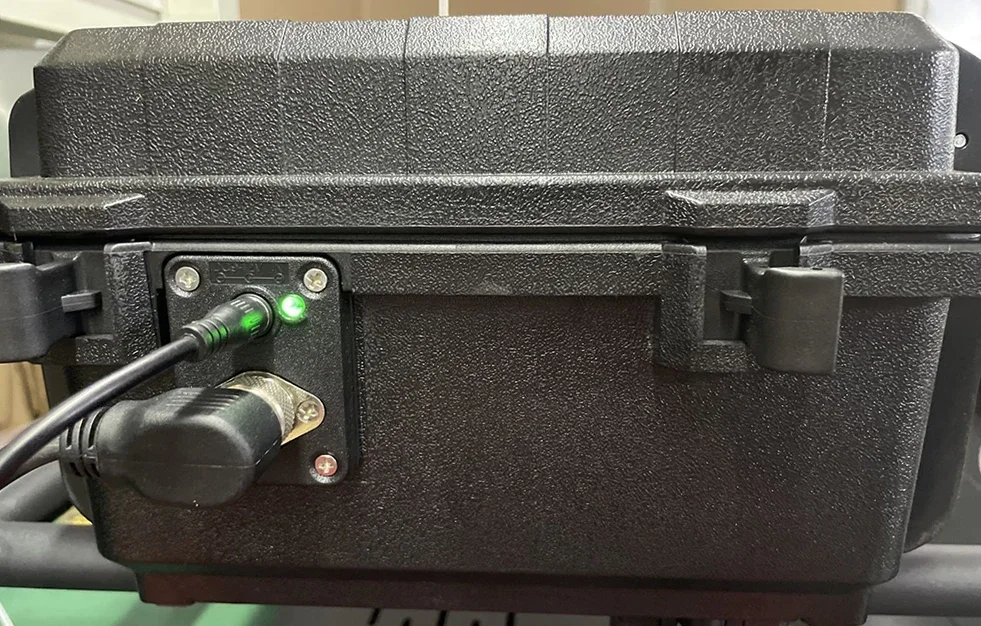

The equipment can be charged even the case is closed and the power indicator shows the charging state
Features:
1/4'' CMOS camera, 90 degree view angle
Stainless steel camera housing
Camera diameter 12.8mm
Scratch-proof Sapphire glass lens cover
Built-in 6 intensity LEDs source
IP66 waterproof level
10-60m fiberglass rod cable
1/4'' CMOS camera, 90 degree view angle
Stainless steel camera housing
Camera diameter 12.8mm
Scratch-proof Sapphire glass lens cover
Built-in 6 intensity LEDs source
IP66 waterproof level
10-60m fiberglass rod cable
Camera
Sensor:1/4'' CMOS
View Angle:90 degree
Focus Distance: 5cm (approx)
Depth of View: 20cm(approx)
Camera size: φ12.8mm*12mm(main body)
Camera length: 135mm
Front Lens: Sapphire glass
Shell Material: Aluminum
Lighting: Built-in 6*LED(white)
Waterproof: 20m water(camera fixed on cable)
Power supply: 12V
Sensor:1/4'' CMOS
View Angle:90 degree
Focus Distance: 5cm (approx)
Depth of View: 20cm(approx)
Camera size: φ12.8mm*12mm(main body)
Camera length: 135mm
Front Lens: Sapphire glass
Shell Material: Aluminum
Lighting: Built-in 6*LED(white)
Waterproof: 20m water(camera fixed on cable)
Power supply: 12V
Specifications
|
Item
|
21mm camera
|
12.8mm camera
|
||
|
General
|
Operating Temperature
|
-10~50°C/+14~+122°F
|
||
|
Operating Humidity
|
30%RH~90%RH
|
|||
|
Storage Temperature
|
-20~60°C/+4~+140°F
|
|||
|
Power adapter
|
Input:110VAC~240V AC, Output:12V DC 2A
|
|||
|
Power Supply
|
DC 12 input
|
|||
|
Current Consume
|
750mA Max
|
|||
|
Batter y Capacity
|
9000mAh Li-ion Battery
|
|||
|
A Single Charge Work Time
|
7.5 Hour(9inch DVR); 4 Hour(13.3inch DVR)
|
|||
|
Charge Time
|
7Hour
|
|||
|
Waterproof
|
P66
( Whole machine is waterproof only when the control box is closed and camera fully installed)
|
|||
|
MEA S.
|
QY6566: 445*385*355mm; QY6688: 540*430*365mm
|
|||
|
Weight
|
QY6566:Approx 9Kg; QY6688:Approx 13Kg
(slight different from different length of cable)
|
QY6566:Approx 8.5Kg; QY6688:Approx 12Kg
(slight different from different length of cable) |
||
|
Camera
|
Sensor
|
1/ 3" CMOS
|
1/ 4" CMOS
|
|
|
TV-Line
|
1080P (1920*1080)
|
720P (1280*720)
|
||
|
View Angle
|
120°
|
90°
|
||
|
Focus Distance
|
15cm (approx)
|
5cm (approx)
|
||
|
Depth Of Field
|
100cm(approx)
|
100cm(approx)
|
||
|
Camera Size
|
Φ21mm×45mm (Main body)
|
Φ12.8mm×12mm (Main body)
|
||
|
Camera Length
|
165mm
|
135mm
|
||
|
Front Lens
|
Sapphire
|
|||
|
Shell Material
|
304#Stainless Steel
|
|||
|
Lighting
|
Built-in 12×LED (White)
|
Built-in 6×LED (White)
|
||
|
LED Driver
|
Built-in Dimmer(Pulley button)
|
|||
|
Water-resistant
|
20m water (Camera fix on Cable)
|
|||
|
DVR
|
Screen
|
IPS 16:9 super bright high-definition color LCD screen
|
||
|
Resolution
|
9inch DVR: 1024(RGB)×600; 13.3inch DVR:1920(RGB)×1080
|
|||
|
Mirror and Flip
|
9inch DVR: Support image mirror, Flip, Mirror & Flip; 13.3ich DVR: None
|
|||
|
Video Resolution
|
1920×1080
|
1080×720
|
||
|
Video Encoding
|
H.264
|
|||
|
Photograph
|
1920×1080
|
1080×720
|
||
|
Audio Recording
|
Local Sound
|
|||
|
Out Put
|
TV and Audio output
|
|||
|
External Memory
|
Support MAX. 1TB SD Card or USB storage device
|
|||
|
Play Back
|
Photo and Video with Audio
|
|||
|
Language
|
English, Chinese
|
|||
|
Keyboard Compatibility
|
Support Specific PC Wireless keyboard
|
|||
|
Typing Language
|
English
|
|||
|
Precision of Meter
|
Counter ±0.5%
|
|||
|
Meter and Feet Switch
|
Support
|
|||
|
Set Zero
|
Support
|
|||
|
Cable
|
Cable Diameter
|
Φ5.3mm
( QY6688 can be optional diameter 6.8mm cable)
|
Φ4.8mm
|
|
|
Cable Color
|
Red
|
Blue
|
||
|
Cable Length
|
QY6566:10/20/ 30meter (Selectable);
QY6688: 30/40/50M( 6.8mm cable:20/30/40M)
|
QY6566:10/20/ 30meter (Selectable);
QY6688: 30/40/50M
|
||
|
Meter Counter
|
Standard
|
|||
|
Control Box
|
Size
|
361*262*157mm
|
||
|
Box color
|
Black+Red
|
|||

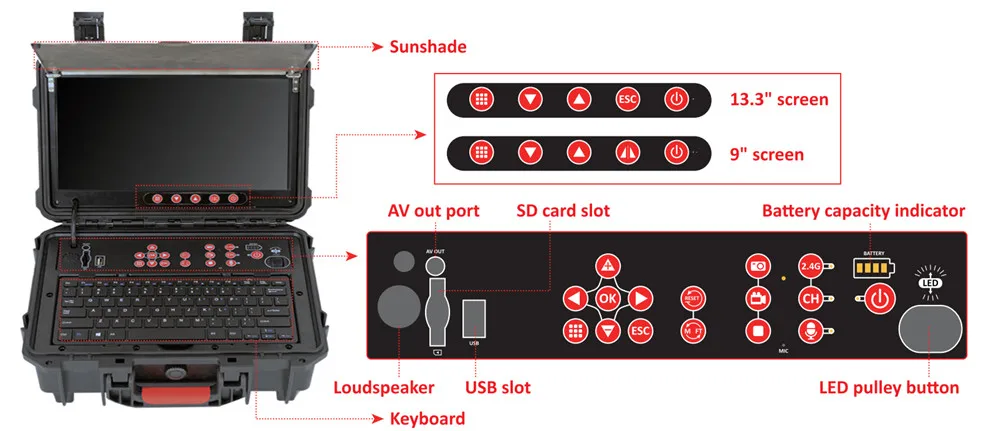

Control box ( DVR )

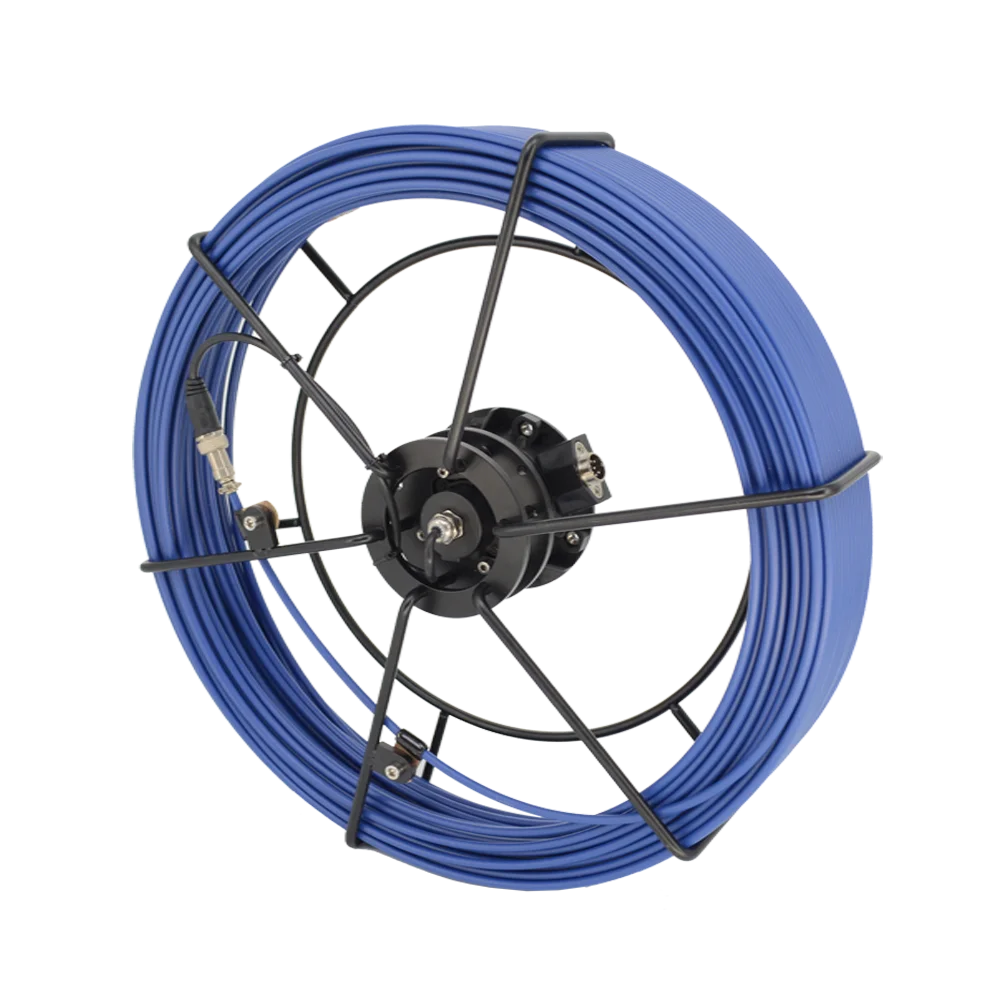

Cable reel with meter counter

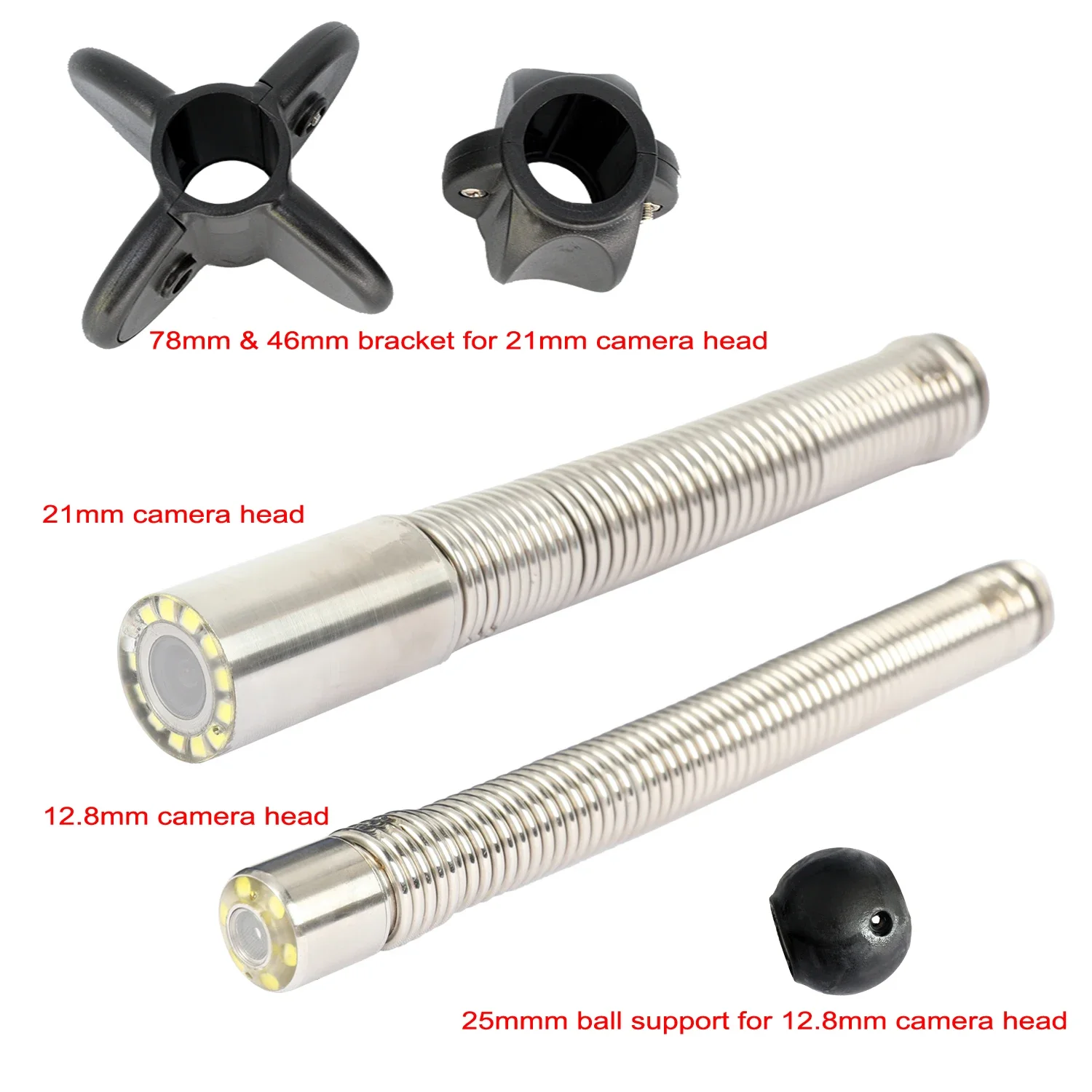

Stainless camera head and Bracket
