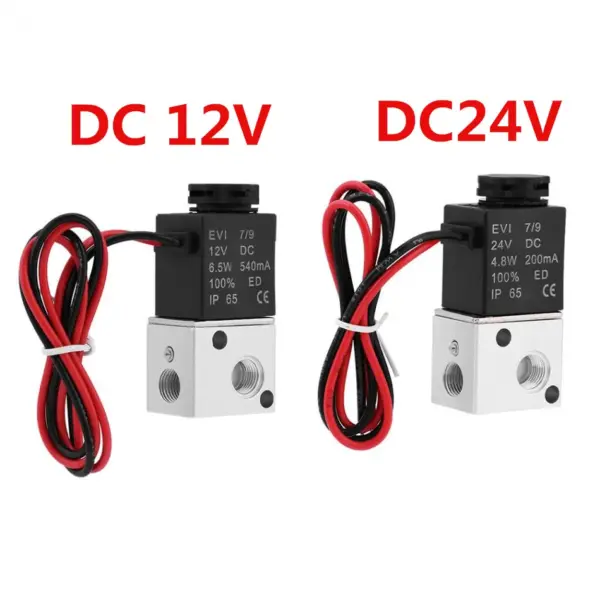

1 Pcs 3V1-06 NC Solenoid Valve DC 12V/24V 3 Way 2 Position 1/8inch BSP Normally Closed Pneumatic Electric Ball Valve

1 Pcs 3V1-06 NC Solenoid Valve DC 12V/24V 3 Way 2 Position 1/8inch BSP Normally Closed Pneumatic Solenoid Air Valve

Descriptions:

This solenoid air valve is 3 way 2 position, direct acting normally closed type, made of high quality brass material, sturdy body have a long lifespan, perfect for electrically driven pneumatic power control.

Features:

• This solenoid air valve is made of high quality brass material, and durable in use.

• This is direct acting type normally closed solenoid air valve, which is sensitive to change direction.

• Sturdy body have a long lifespan, perfect for electrically driven pneumatic power control.

• The inner valve core and spring are made of stainless steel and will not rust, no need additional lubricate.

• With solenoid operated for control appropriate flow and direction, provide great performance.

• This solenoid air valve is a great replacement for the broken or old one.

Specifications:

Material: brass

Working medium: air

Acting mode: direct acting

Type: normally closed type

Voltage(Optional): DC12V/24V

Receiver diameter: 1/8"BSP

Use pressure: 0-0.08MPa

Maximum pressure resistance: 1.0Mpa

Operating temperature range: 10 ~ + 60

Use voltage range: ±10%

Protection level: IP65

Electrical connection: outlet type or terminal type

Maximum action frequency: 10 times/s

Minimum excitation time: 0.005 / S

Size: 6.6 x 3 x 2.2cm/2.60 x 1.18 x 0.87inch

Weight:136g,135g

Package Included:

1 x Solenoid Air Valve
