Material: Metal

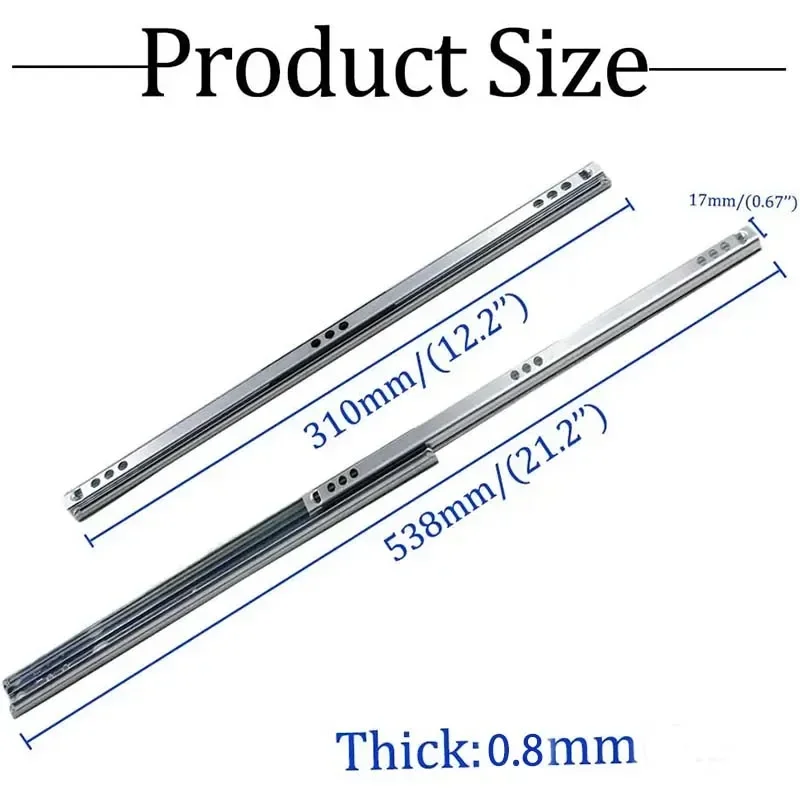

Item size: 180mm – 406mm
Finish Type: Steel

Maximum load capacity: 10kg

Sheet thickness: 0.8mm
Mounting Type: Side Mount

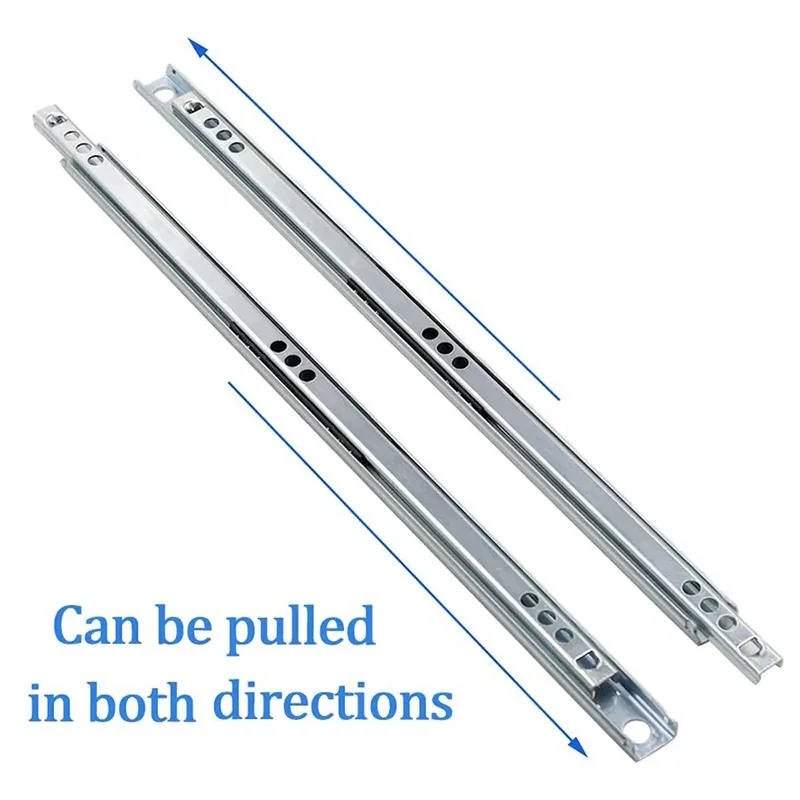

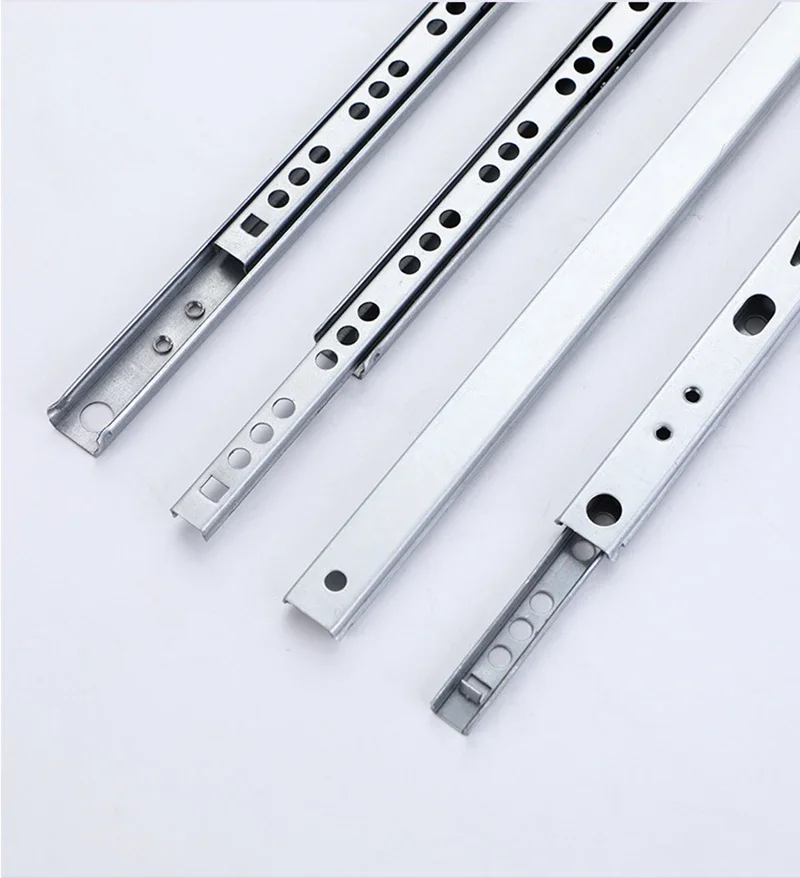

The 17mm rail is a two-way rail, the inner rail is not removable.

• 【PACKAGE INCLUDES】:1 Pair x Drawer Slide. Note: Please read the installation step in detail when you installation.
• 【EASY TO USEAGE】: Small drawer slides are designed with multiple fixed hole positions for easy installation and adjustment.
• 【PREMIUM QULITY】: Drawer rails work harden cold rolled steel with zinc plated finish will give you precise thickness and smooth surface.
• 【FUNCTION】: Soft close function avoids noise during the push-pull, makes it quieter, and the slow closing prevents your baby’s hands from being clamped by the drawer.

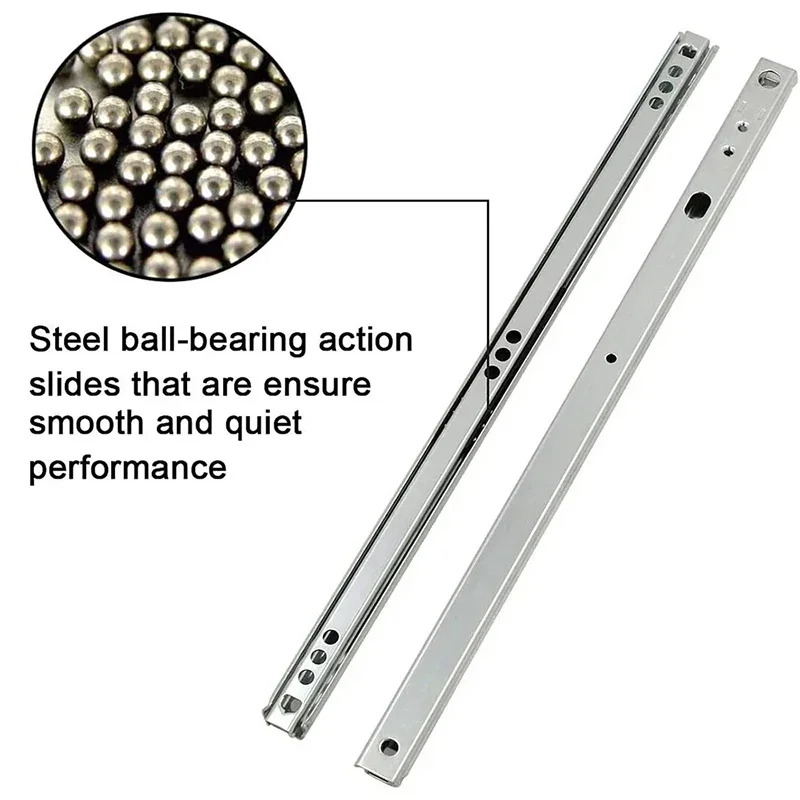

• 【DESIGNED】: 2 Sections, stainless steel balls in the ball positioning groove which can stable ball sliding direction, not easy to derail , and they are wear-resistant, hard and smooth.



•
•
•

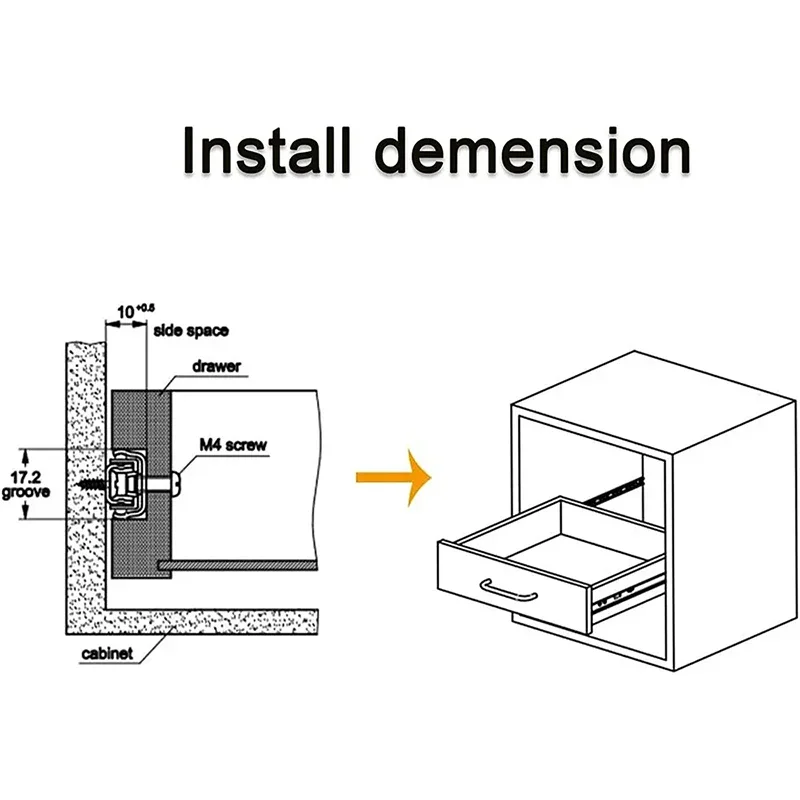

How to install
1. Slide the drawer guide to expose the mounting hole.
2. The narrower part screws to the inner side of the “sidewall” with the wood screws.
3. The wider part slides into a groove on the drawer side and is attached by one of the screws passing through a hole from inside the drawer and screwing into the tapped hole in the wider slide part.
Note: There will be a hole in the drawer to block the screw, which will not affect the use.
