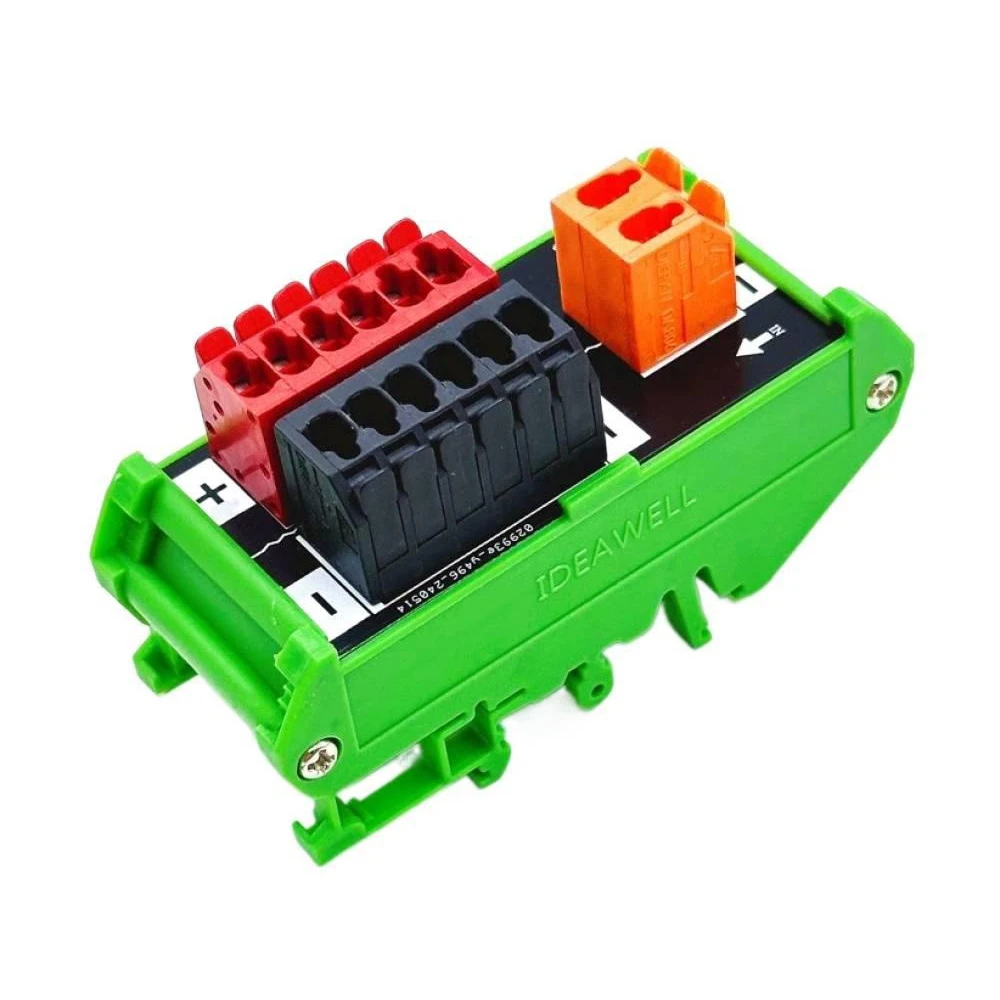

1 Input 4/6/8 Output Power Distribution Box DIN Rail Mount Terminal Block 99V/220V 20A Distribution Box for DC AC Power Supply

1 Input 4/6/8 Output Power Distribution Box DIN Rail Mount Terminal Block 99V/220V 20A Distribution Box for DC AC Power Supply

Specification:

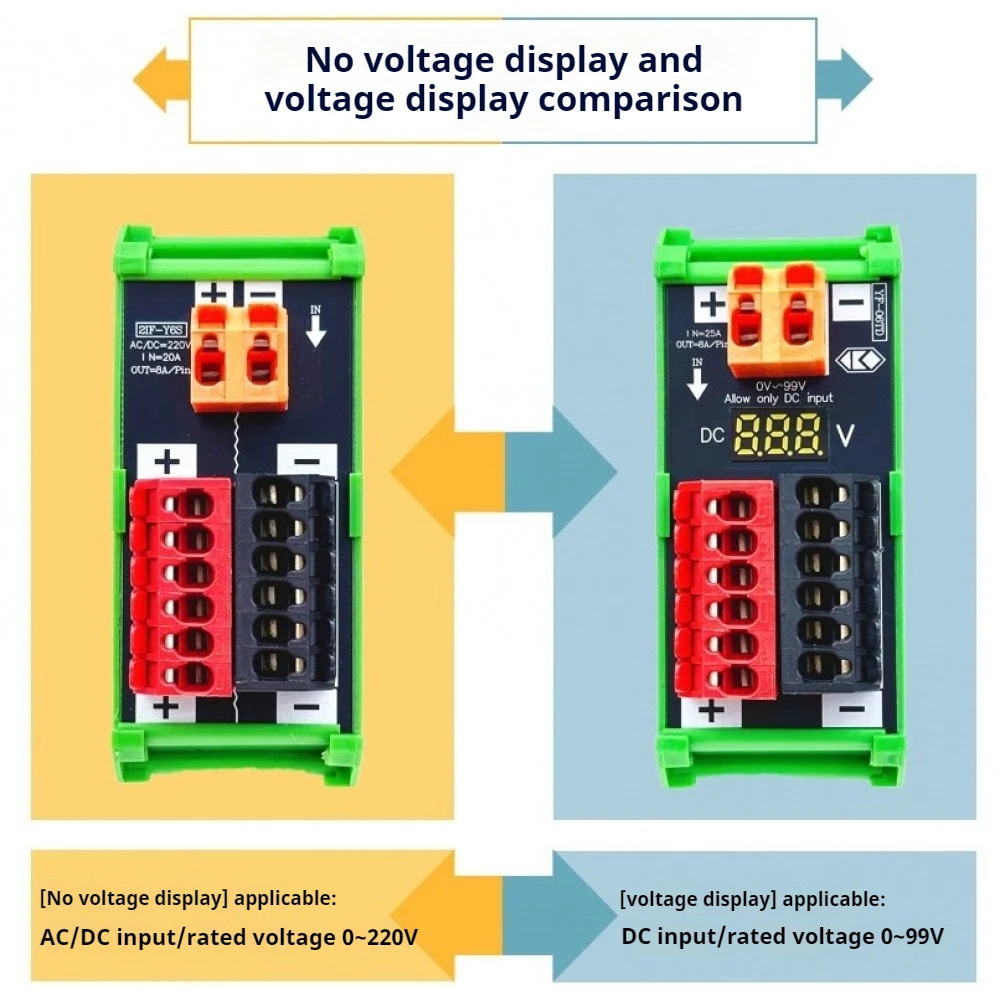

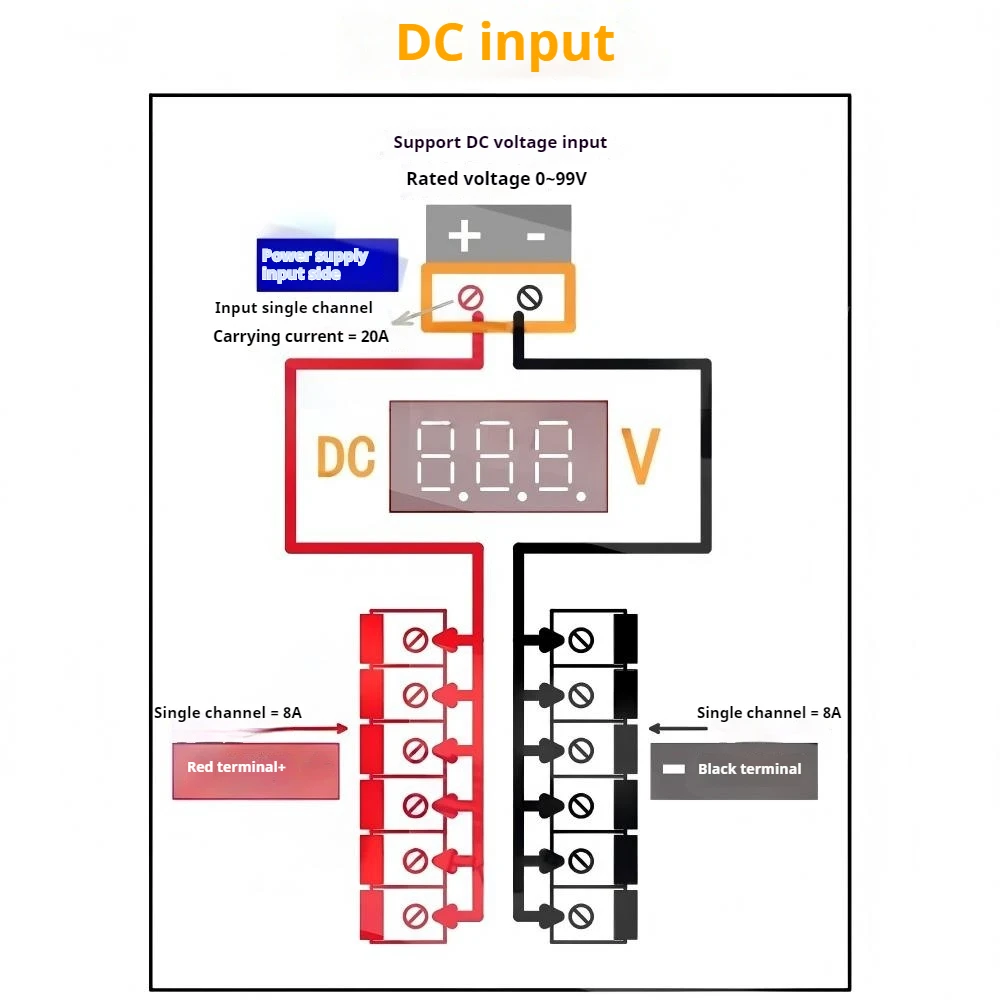

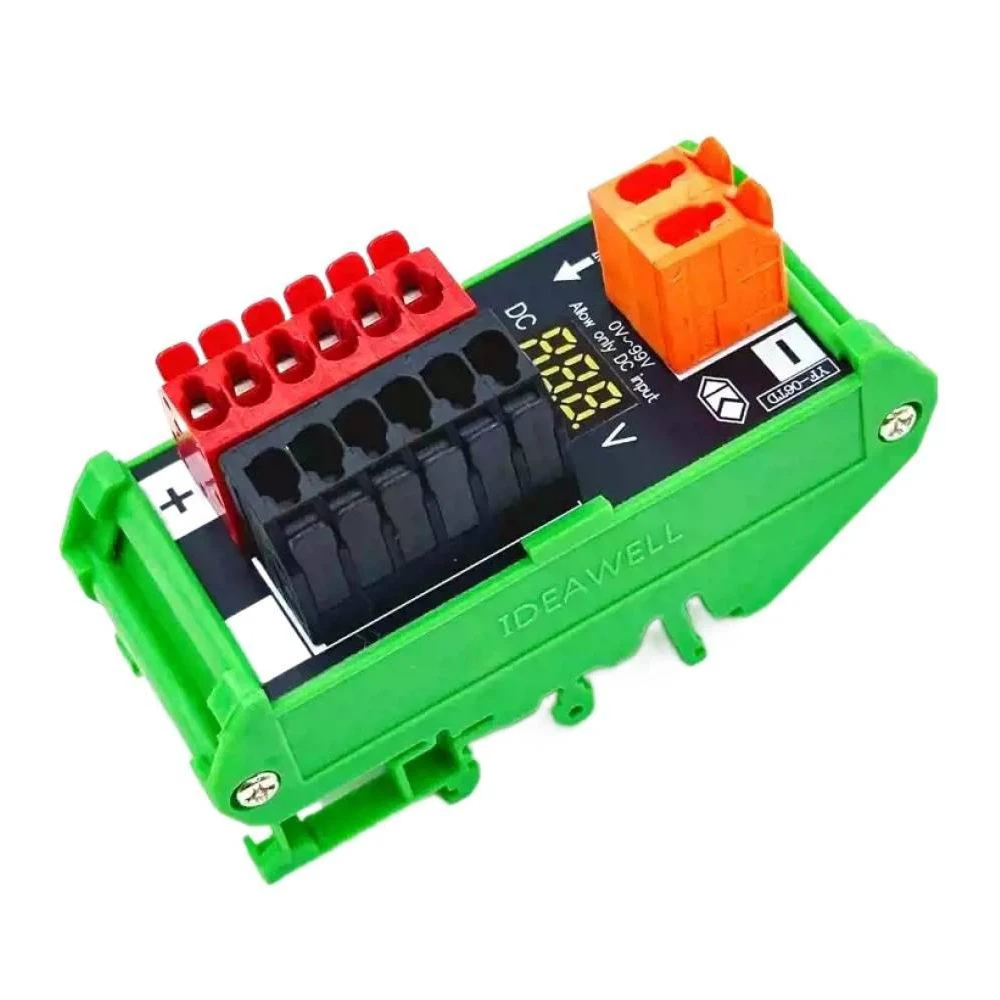

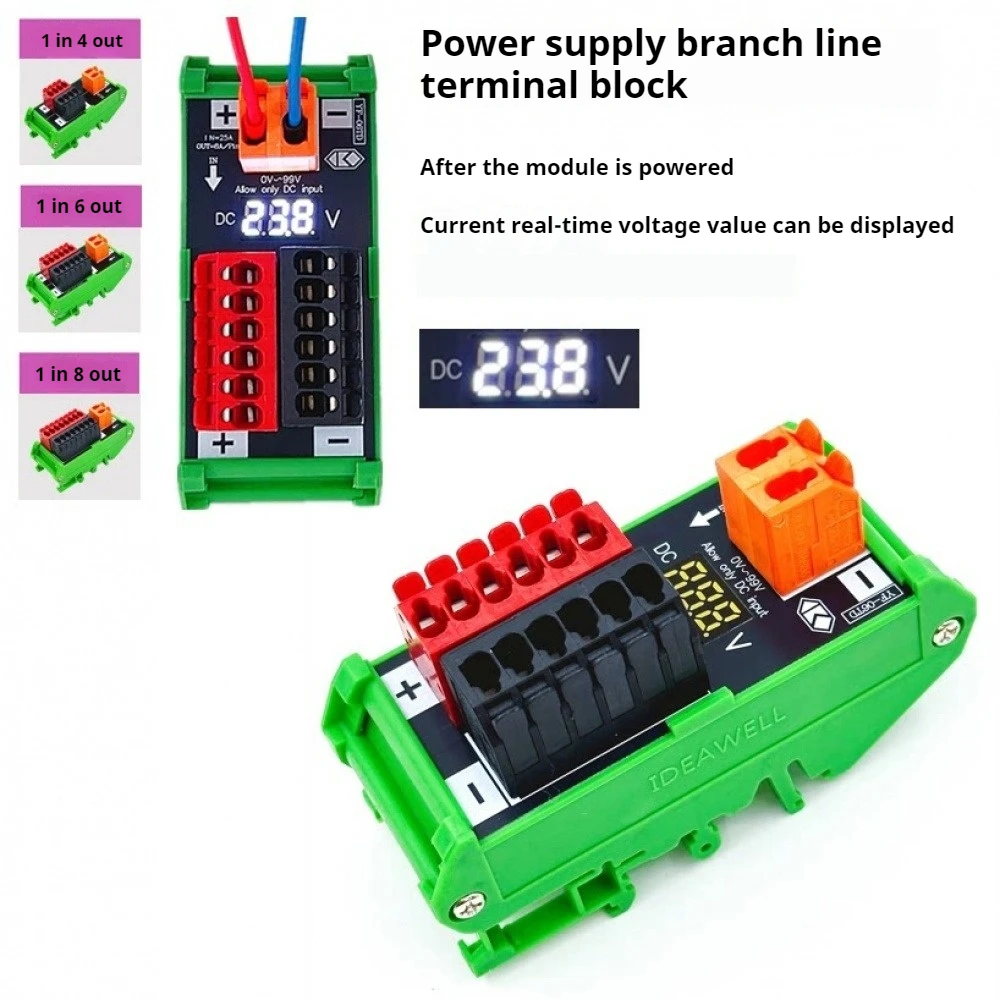

Module Name: 1 Input 6 Output [With Voltage Display]

Module Size: 38*91*52mm

Installation Type: Rail Installation

Total Rated Current: 20A (Single Branch Rated Current ≤8A)

Rated Voltage: 3.3~99V

Input Port Interface Wire Diameter: 22~12AWG/0.5~4mm²

Output Port Interface Wire Diameter: 22~12AWG/0.5~4mm²

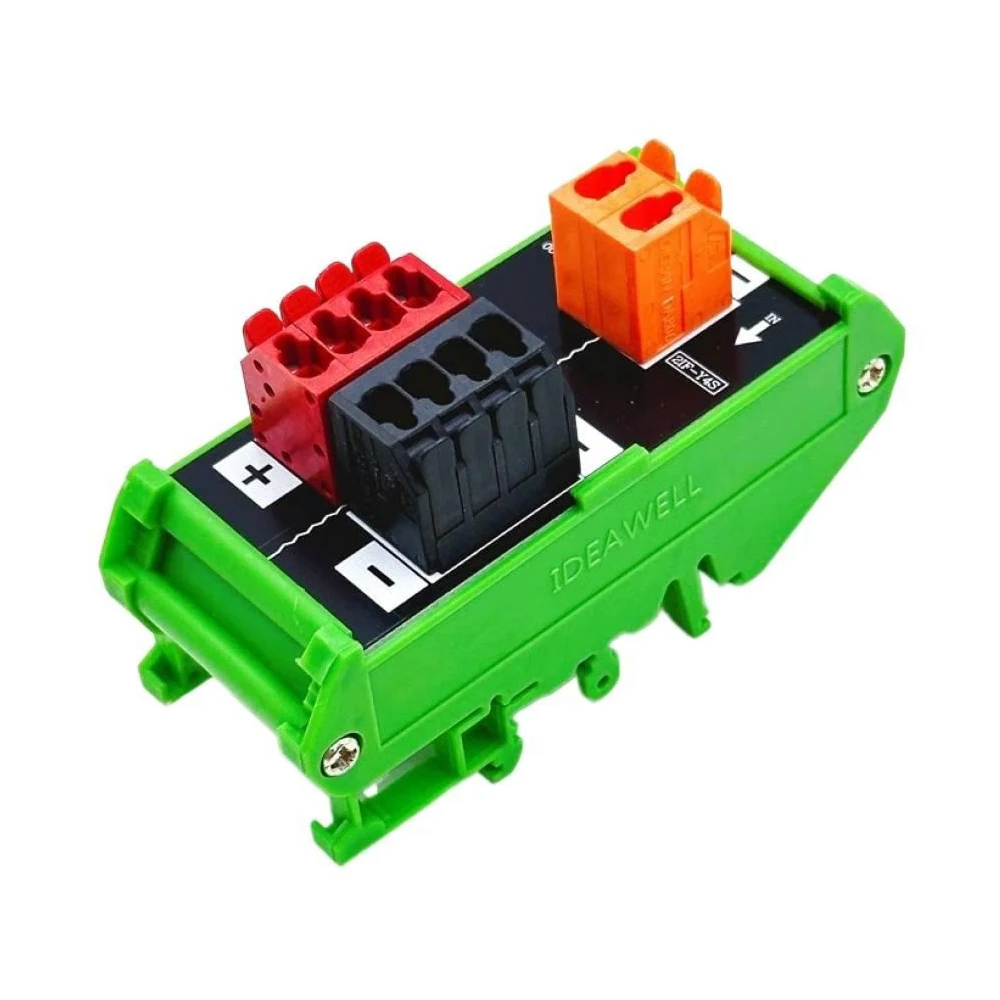

Module Name: 1 Input 4 Output [No Voltage Display]

Module Size: 38*91*52mm

Installation Type: Rail Installation

Total Rated Current: 20A (Single Branch Rated Current ≤8A)

Rated Voltage: 0~220V

Input Port Interface Wire Diameter: 22~12AWG/0.5~4mm²

Output Port Interface Wire Diameter: 22~12AWG/0.5~4mm²

Module Name: 1 Input 6 Output [No Voltage Display]

Module Size: 38*91*52mm

Installation Type: Rail Installation

Total Rated Current: 20A (Single Branch Rated Current <8A)

Rated Voltage: 0~220V

Input Port Interface Wire Diameter: 22~12AWG/0.5~4mm²

Output Port Interface Wire Diameter: 22~12AWG/0.5~4mm²

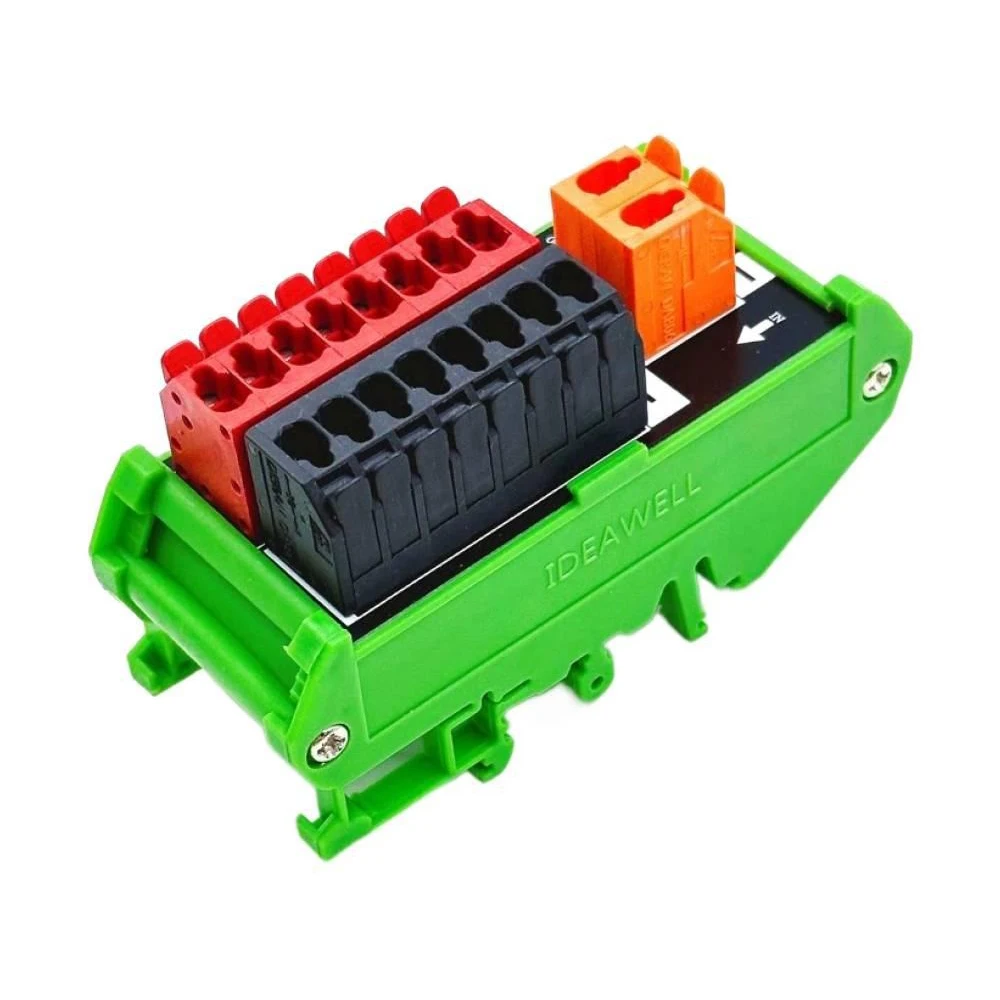

Module Name: 1 Input 8 Output [No Voltage Display]

Module Size: 38*91*52mm

Installation Type: Rail Installation

Total Rated Current: 20A (Single Branch Rated Current <8A)

Rated Voltage: 0~220V

Input Port Interface Wire Diameter: 22~12AWG/0.5~4mm²

Output Port Interface Wire Diameter: 22~12AWG/0.5~4mm²

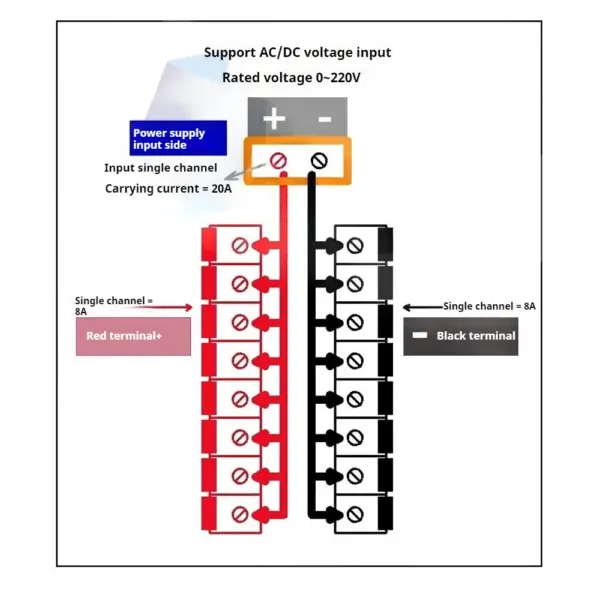

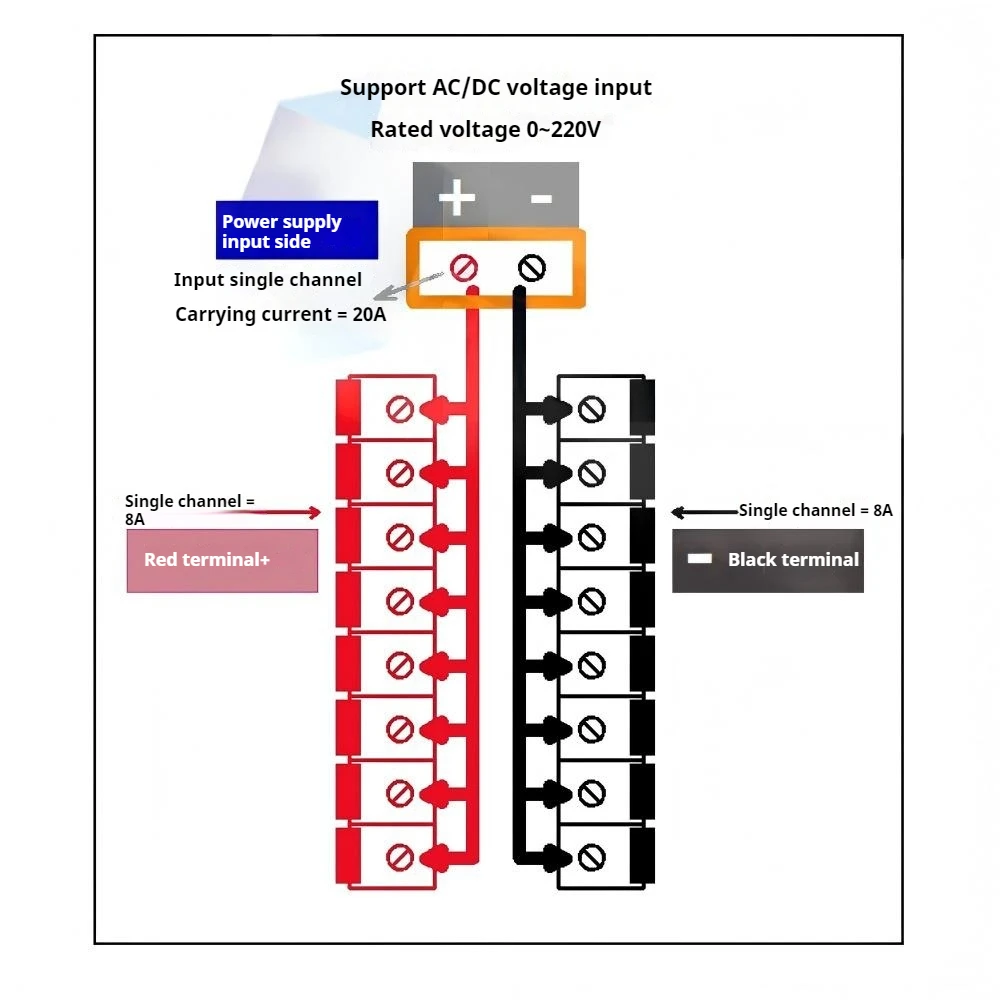

Applicable: Suitable for expansion wiring of AC/DC power supplies. It can divide and expand the input power type into multiple output paths

Note:

1.Due to the light and screen difference, the item's color may be slightly different from the pictures.

2.Please allow 1mm-1cm differences due to manual measurement.

Package Includes:

1x Power Distribution Box
