1/2" Solenoid Valve 12V 24V 220V Magnetic Washing Drinking Water Pneumatic Pressure Controller Normally Closed/Open Switch

Product selling point:

1. Made of imported stainless steel springs and high-quality materials

2. Sturdy and durable, long service life

3. Safe and reliable

4. High sensitivity

5. Beautiful appearance and excellent performance

Specifications:

Model specifications: normally closed water inlet valve solenoid valve switch

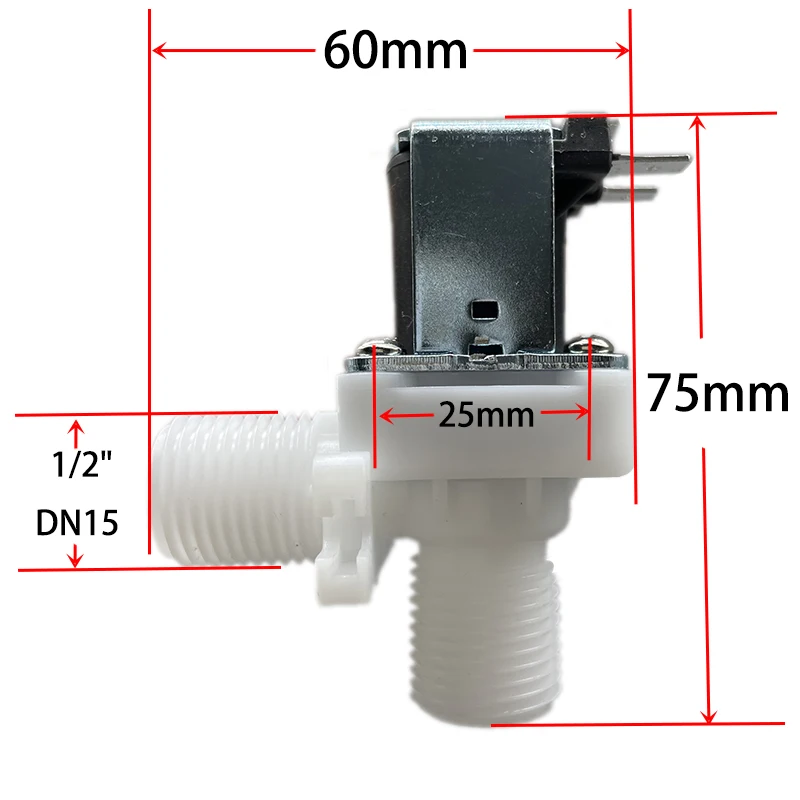

Pipe diameter: G1/2

Thread diameter: 1/2 20.5mm; 3/4 25.5mm

type: right angle

Technical parameter:

Inlet valve flow: under rated voltage, when the pressure is 0.8MPa, the water inlet: 13-20L/min

Pressure range: 0.02～0.8mpa

Temperature range: 0～80°

Voltage: DC12V/DC24V/AC220V

Power: 4.8W/6W

Scope of application: Suitable for various types of water dispensers, automatic washing machines, induction sanitary ware, shower rooms, computer sauna steam rooms, electric water heaters and other electronically controlled water and steam equipment and other products.

Package List:

Solenoid valve switch*1
