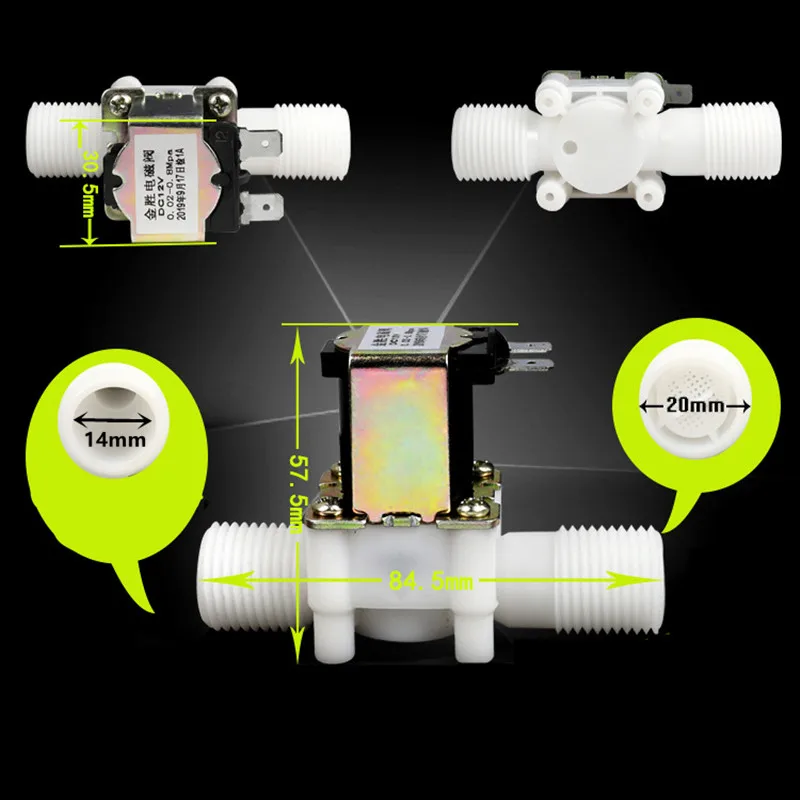

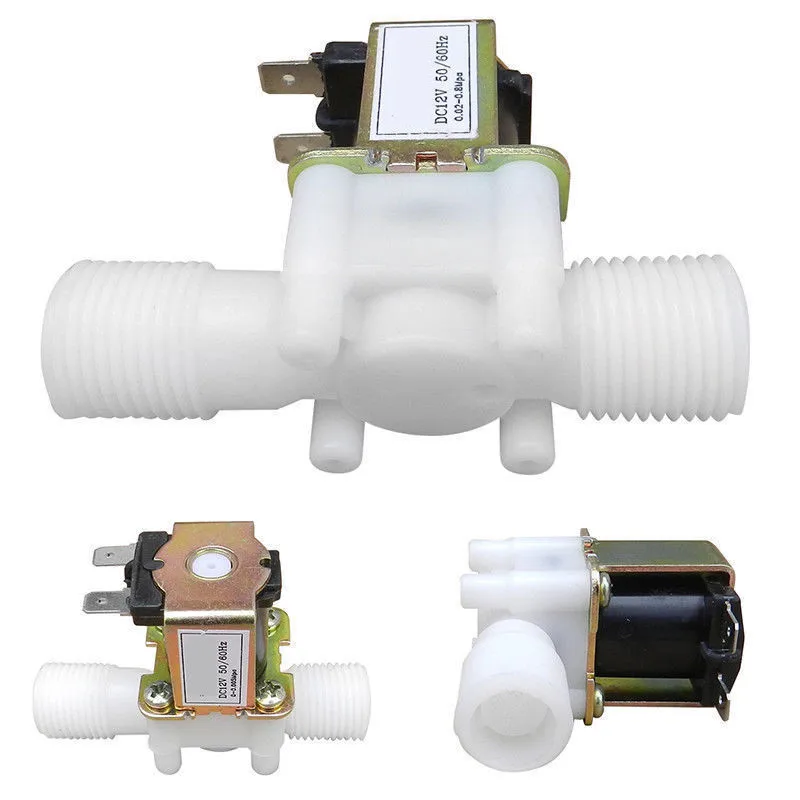

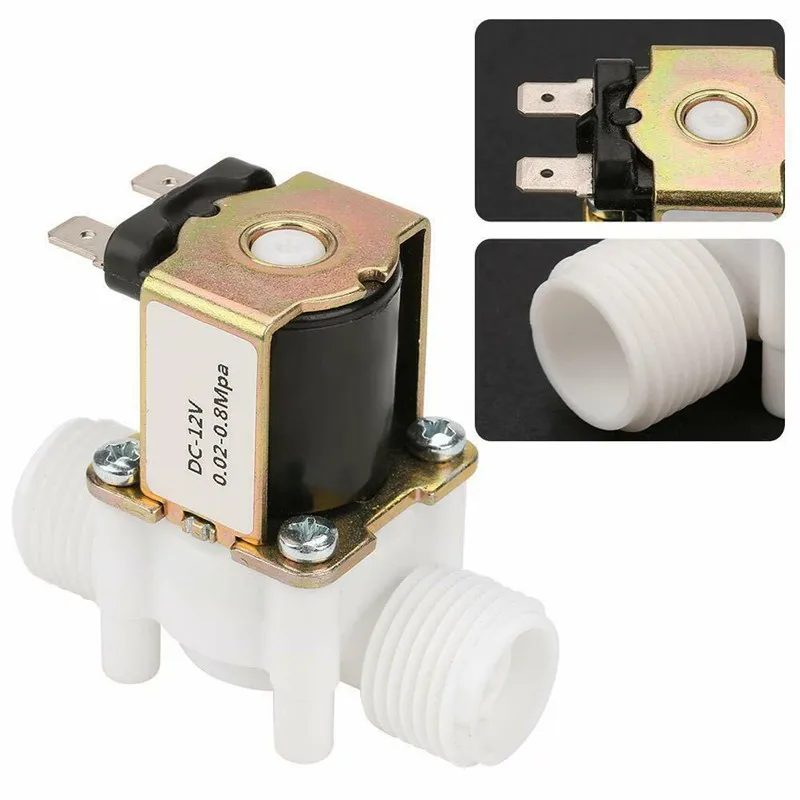

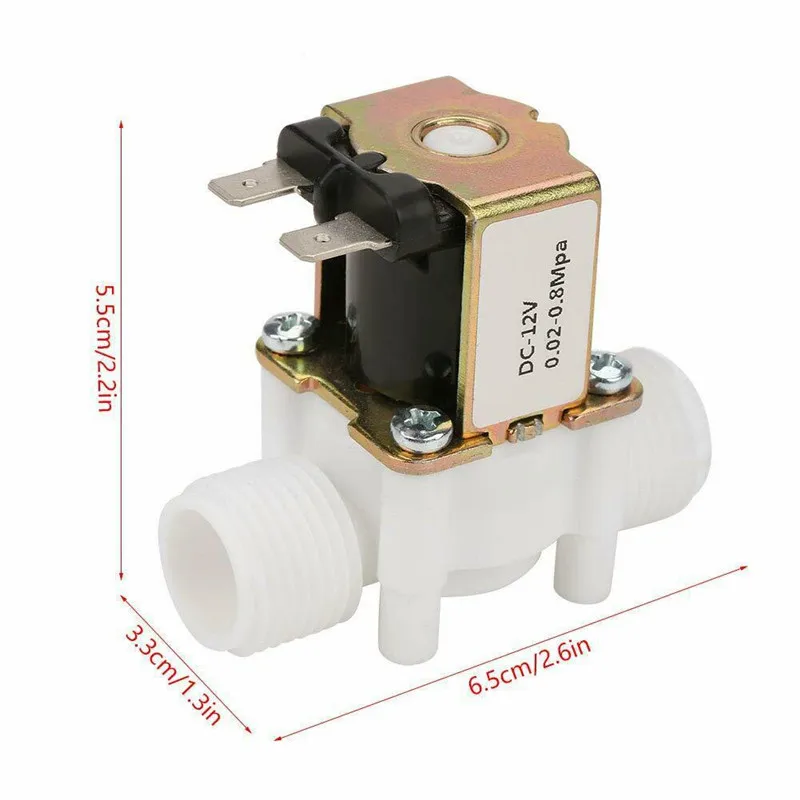

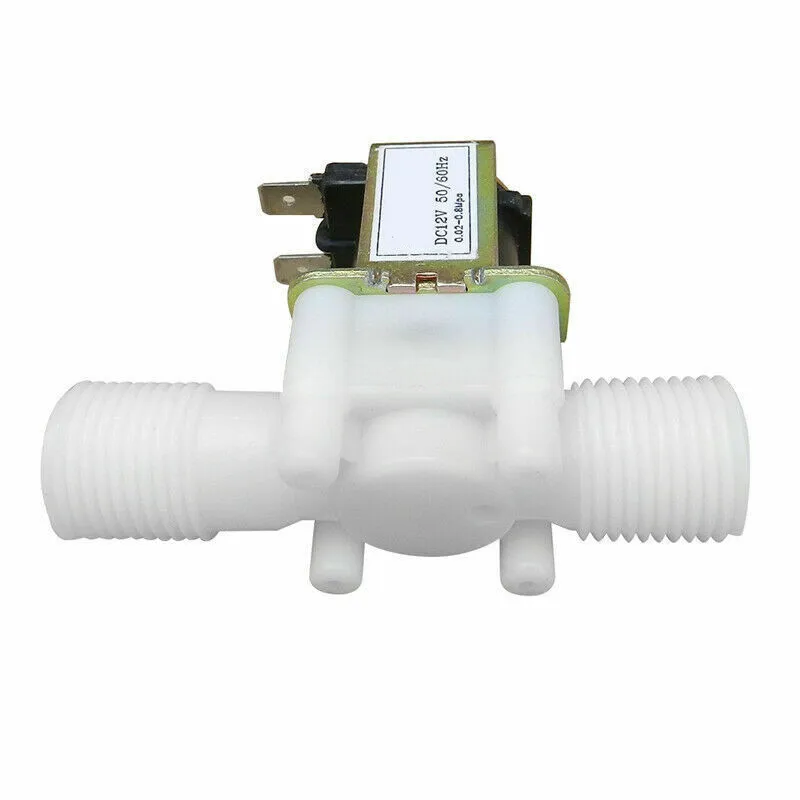

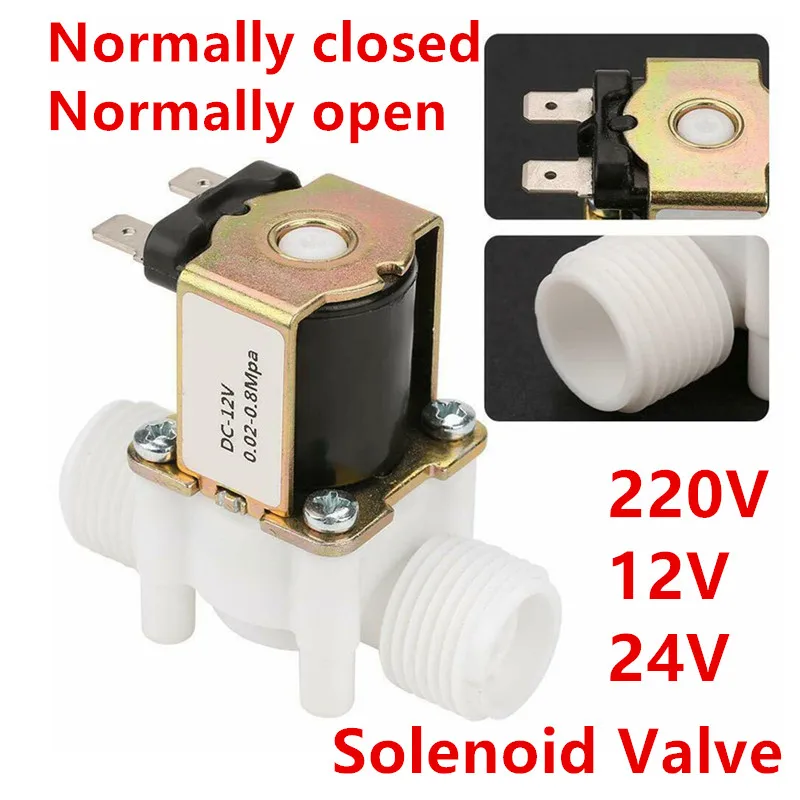

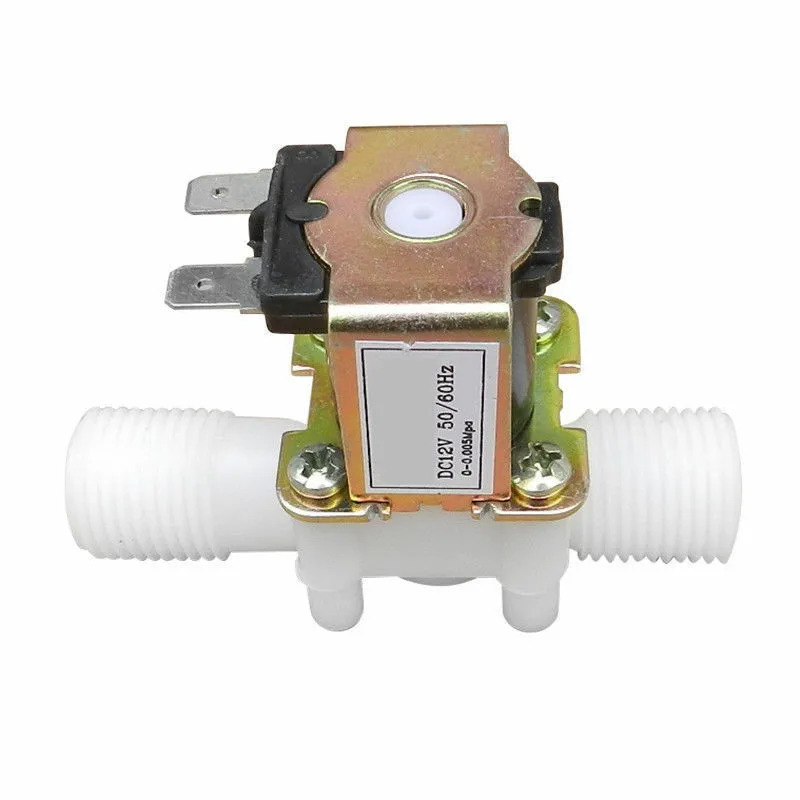

1/2" 3/4" Male Thread Solenoid Valve AC 220V DC 12V 24V Water Control Valve Controller Switch Normally closed normally open

Product information:
Product name:220V AC/12V 24V DC Solenoid Valve
Voltage: 12V 24V DC /220V AC
Pressure: 0.02 – 0.8Mpa

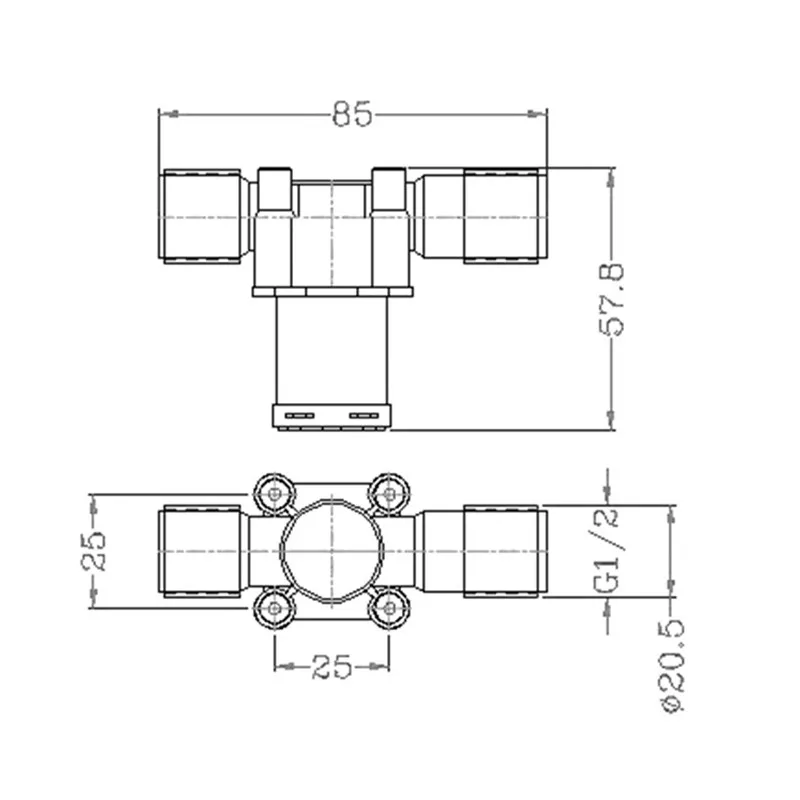

Connection size: 1/2",3/4" Male Thread
Media: Water or low viscosity fluids
Operation model : Normally closed (N/C) OR Normally open

Thread unit conversion reference table
1/8" ≈ 9.5mm Male thread ≈ 8.8mm Female thread(Error range 0.2mm)
1/4" ≈ 12.5mm Male thread ≈ 11.5mm Female thread(Error range 0.3mm)
3/8" ≈ 16.2mm Male thread ≈ 15.3mm Female thread(Error range 0.3mm)
1/2" ≈ 20.3mm Male thread ≈ 19.5mm Female thread(Error range 0.3mm)
3/4" ≈ 25.7mm Male thread ≈ 24mm Female thread(Error range 0.5mm)

Specification:
1. 1/2" Male Thread 220V AC Solenoid Valve
2. 1/2" Male Thread 12V DC Solenoid Valve
3. 1/2" Male Thread 24V DC Solenoid Valve
4. 3/4" Male Thread 220V AC Solenoid Valve
5. 3/4" Male Thread 12V DC Solenoid Valve
6. 3/4" Male Thread 24V DC Solenoid Valve

Packing include: 1 Pc x Solenoid Valve ( Type as you choose)

Notice:
The size is measured by hands, please allow minor error of measurement. Photo color might be a little different from the actual product due to color display of different monitors.
