Description

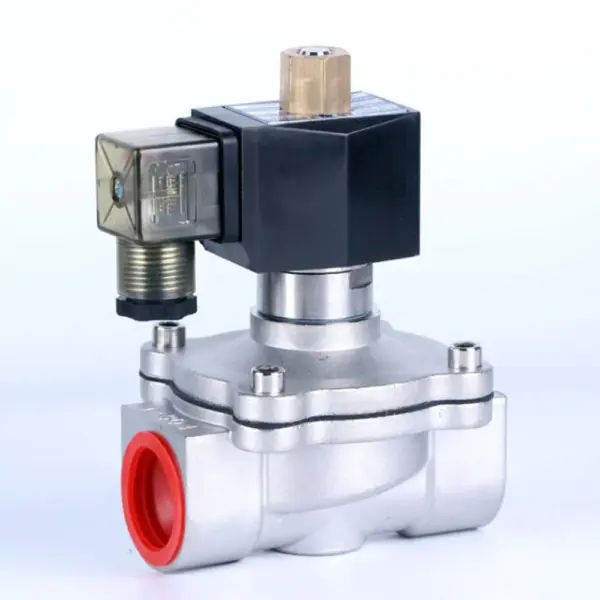

N.O:it will be closed when power on,and open when power off.
Click to transfer the brass body link
Before you buy, you need to know:
Fluid temperature selection instructions:
Max. 80 Celsius / 176 Fahrenheit: The oil seal material is NBR (nitrile butadiene rubber)
Features: excellent oil resistance, high wear resistance and good heat resistance
Max. 130 Celsius / 266 Fahrenheit: The oil seal material is EPDM (Ethylene Propylene Diene Monomer)
Features: high temperature resistance, oxidation resistance, ozone resistance, erosion resistance
Max. 120 Celsius / 248 Fahrenheit: The oil seal material is VITON (Fuororubber). Features: high temperature resistance, chemical resistance, corrosion resistance, suitable for chemical media.
Note: Weight information, G1-1 / 2" = 2.3, G2" = 2.5kg
If you buy directly, we will split the valve body and coil. After receiving the 2pcs package, we need to assemble it ourselves. The nut is tightened and the operation is very simple.
Our recommendation is that buyers choose fast logistics such as DHL, FedEx, and UPS. We will re-quote.
G1/2", G3/4", G1" G1-1/4" Weighing less than 2kg, the price is accurate and can be purchased directly.
|
Thread specification |
Type |
PPR pipe diameter |
Flow bore |
L |
H |
Coil insulation level |
Cv value |
|
G1/2” |
2W-15BK |
20mm |
16mm |
69mm |
112mm |
H |
4.8 |
|
G3/4” |
2W-20BK |
25mm |
20mm |
73mm |
117mm |
H |
7.6 |
|
G1” |
2W-25BK |
32mm |
25mm |
98mm |
122mm |
H |
12 |
|
G1-1/4” |
2W-32BK |
40mm |
32mm |
113mm |
155mm |
H |
24 |
|
G1-1/2” |
2W-40BK |
48mm |
40mm |
119mm |
165mm |
H |
29 |
|
G2” |
2W-50BK |
58mm |
50mm |
135mm |
180mm |
H |
48 |
