1/2" 3/4" 1" Inch Male Male Thread Straight-Through Water Level Valve Tower Float Ball Valve Tank Valve Flush Toilet Accessories

Specification

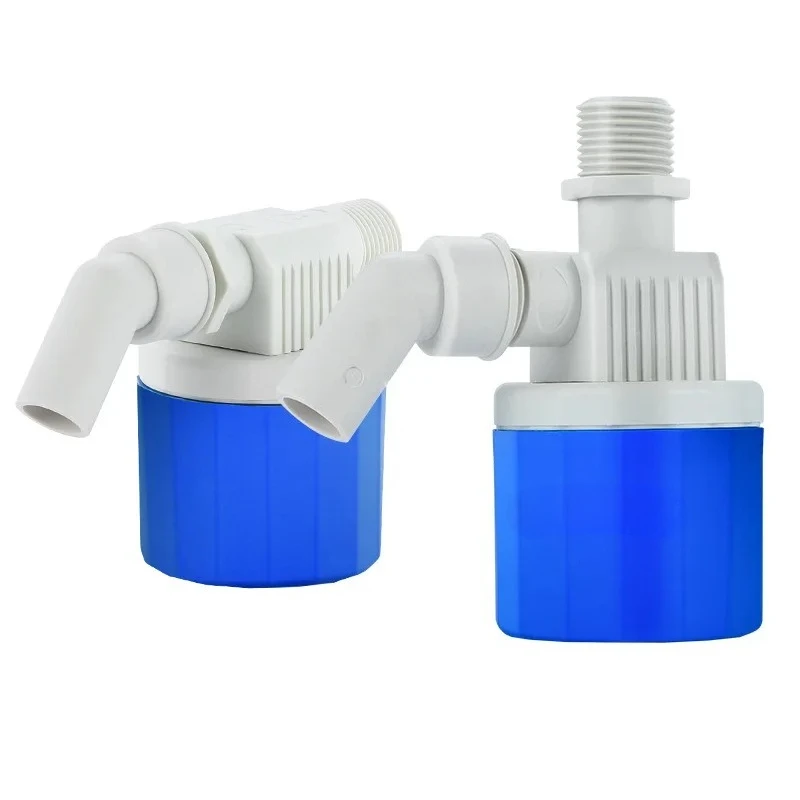

Name: 1/2″ 3/4″ 1″ Male Thread water level valve
Material: Plastic
Connection method: Thread

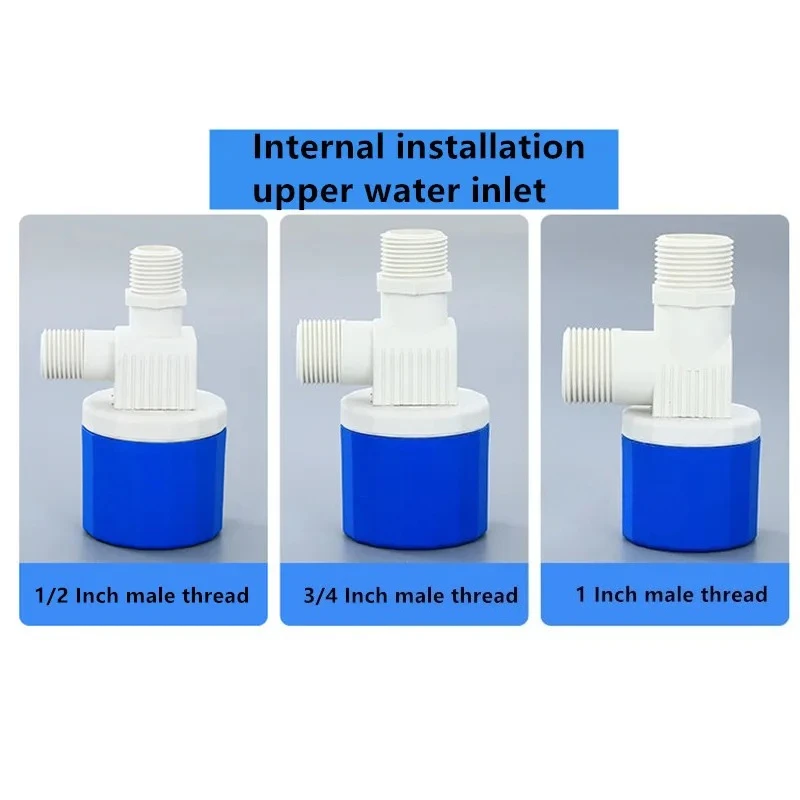

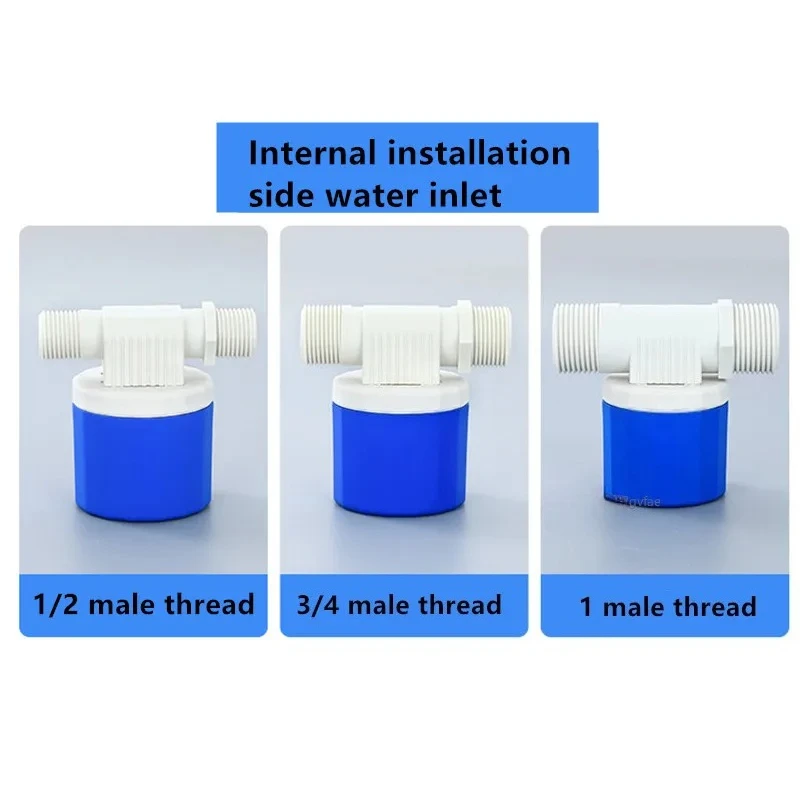

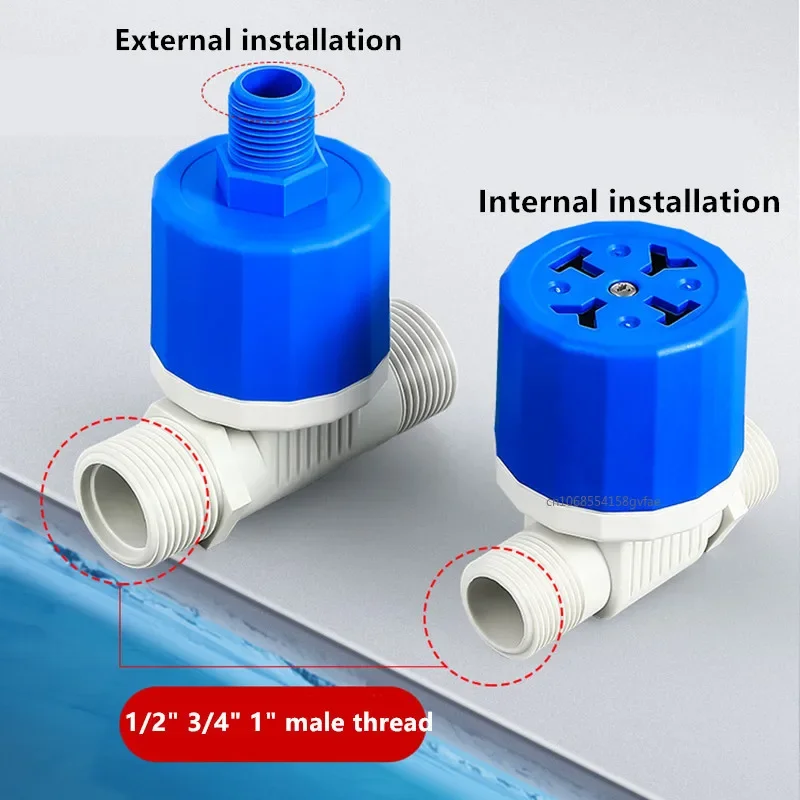

Outlet Diameter: G1/2 G3/4 G1 Male
Working pressure range: 0.2-15kg
Applicable medium: clean water
Applicable medium temperature: ≤70°
High temperature medium temperature: 70°~120°

Package include:
1Pcs Male Thread water level valve

Description:
This valve is the replacement of the traditional float ballcock, which can be applied to various systems of high water tanks, pools, water towers of the industry and civil construction, etc.

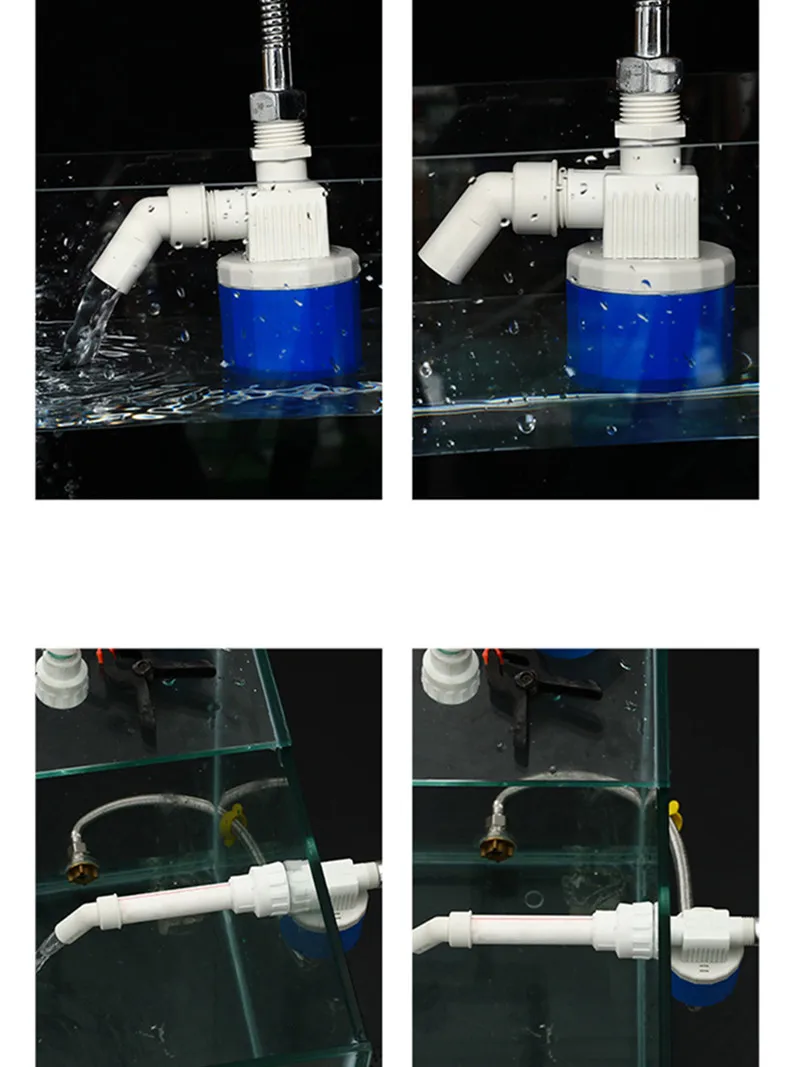

Automatic control, low self-complementary water, water full automatic stop
Beautiful appearance, small size, practical, simple installation
Without electricity, easy to use, long life, low failure rate, saving water resources

Precautions and maintenance:
This production belongs to the liquid level control valves.

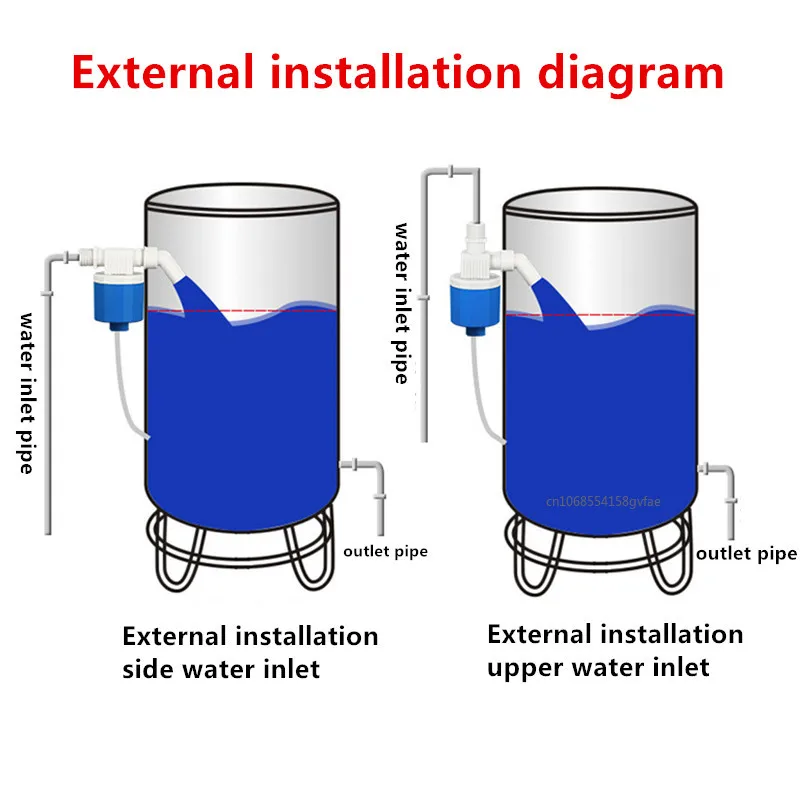

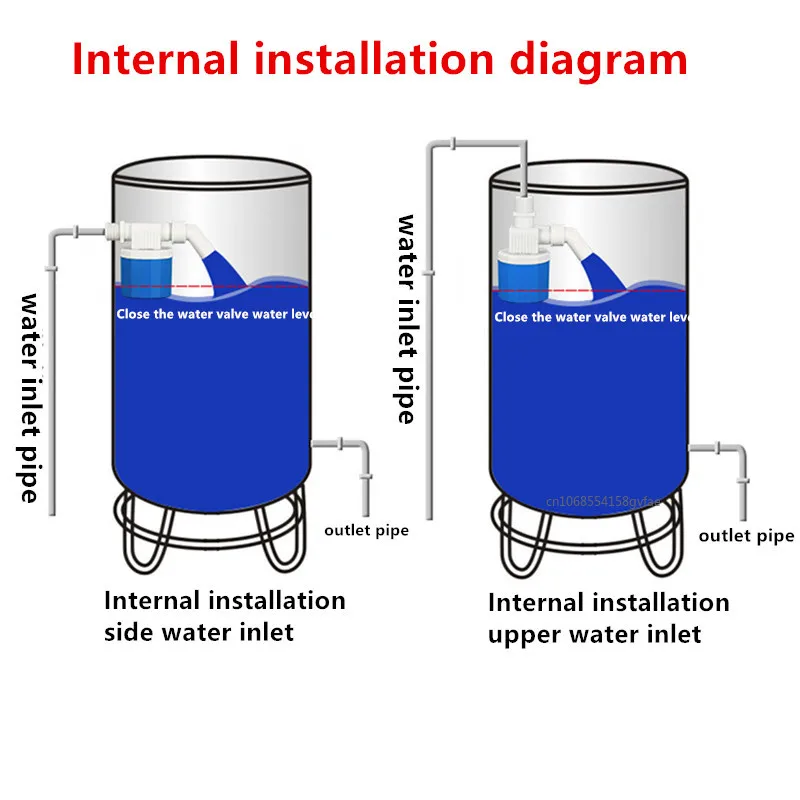

When installed, the float must be vertical. if you need to install from the top , a Elbow needed to connect the float valve and the inlet line.
Firstly, the feed line should be fixed in horizontal plane and then connect the automatic water level control valve on the water inlet according to the standard.
The main water inlet should be lined with the control valves’ Normal Diameter.
When using, the globe valve should be all open.
If two valves are installed in the same pool, the two valves should be held in the same horizontal plane.
Before installing, please clean the impurities in the pipes in case of blocking.
If the water quality is not good, then the valves need to be maintained properly.
If the users find the time of adding water becomes longer, he can just upload the water inlet and make it washed

Notice:
The size is measured by hands, please allow minor error of measurement. Photo color might be a little different from the actual product due to color display of different monitors.
